• Function / Application:
    • for mechanical soil cultivation and wild weed control in the asparagus fields (without spraying technology).
     Basic equipment:
    • Perkins engine
    • Engine control according to EUR VI standard
    • Front and rear hydraulics

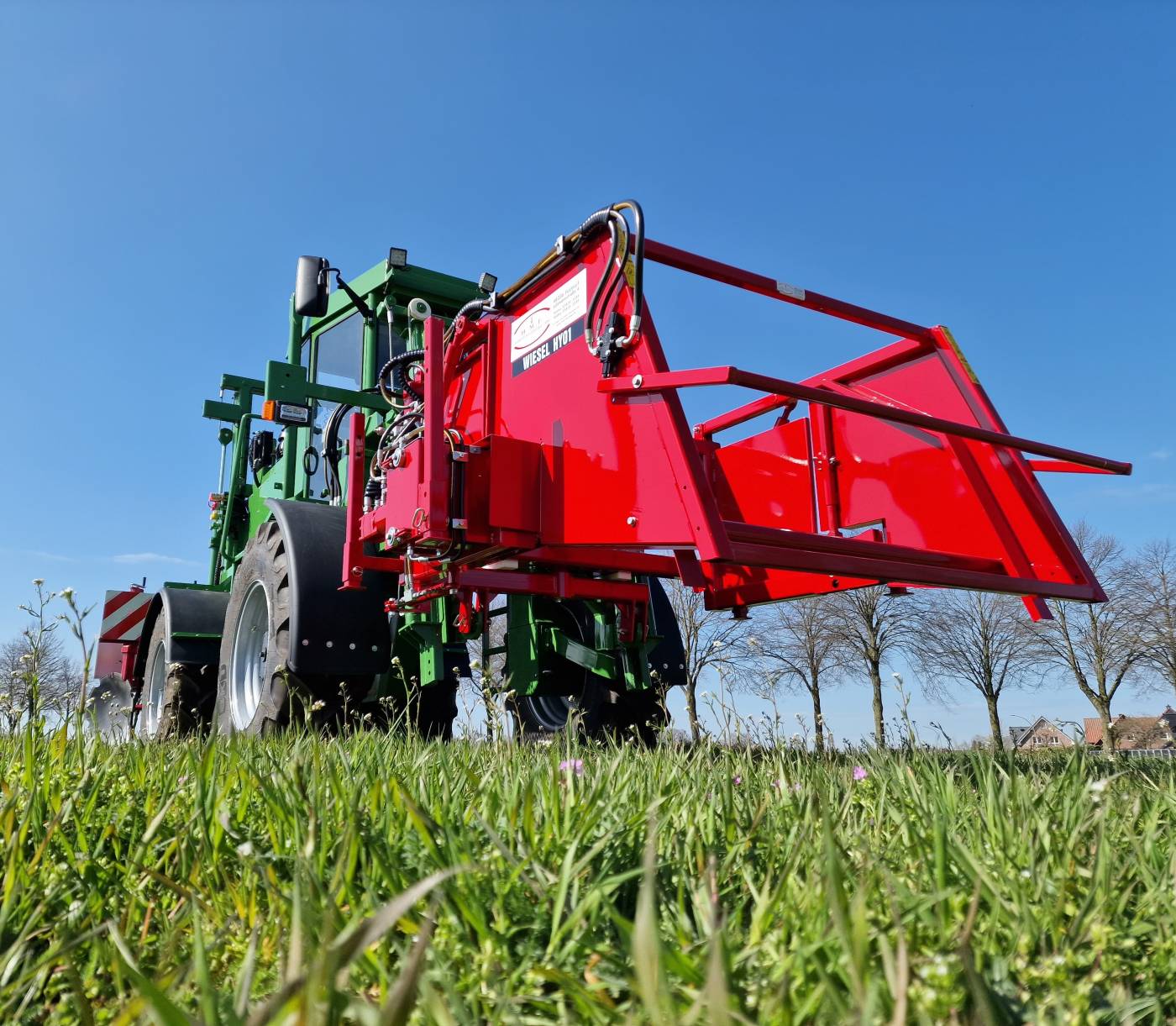

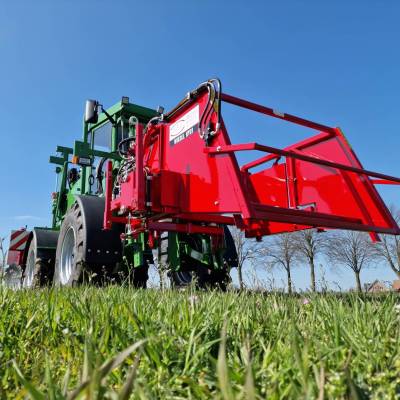

      a) Front hydraulics with three-point linkage cat. 2 for mounting
          HMF-soil tillage machines such as the WIESEL HY01
          film winder or the CHAMÄLEON multipurpose hoe
      b) Rear hydraulics for mounting a hoe (see accessories)
    • 4 x hydraulic pump for a) steering b) working hydraulics
    • 1 x separate pump for travel drive
    • Oil and diesel tank integrated in frame
    • Hydraulic control via joystick
    • All-wheel drive
    • Selectable tyre width (approx. 385, 420 or 520 mm)
    • Air conditioning without heating
    • Radio with 2 loudspeakers
    • Steering wheel adjuster
    • 2 driving modes: road up to max. approx. 20 km/h and field up to approx. 10 km/h
    • Supplied with operating licence (BBA)
     Technical data:
    Engine power: approx. 55 kW
    Clearance height: approx. 1500 mm
    Track width:  up to approx. 2000 mm (depending on selected tyre width)
    Height: approx. 3700 mm
    Total width:  approx. 2500 mm
    Unladen weight: approx. 5.150 kg
    Driving speed: max. approx. 20 h/km
    Accessories / Variations:
    • Rear view camera
    • Cruise control

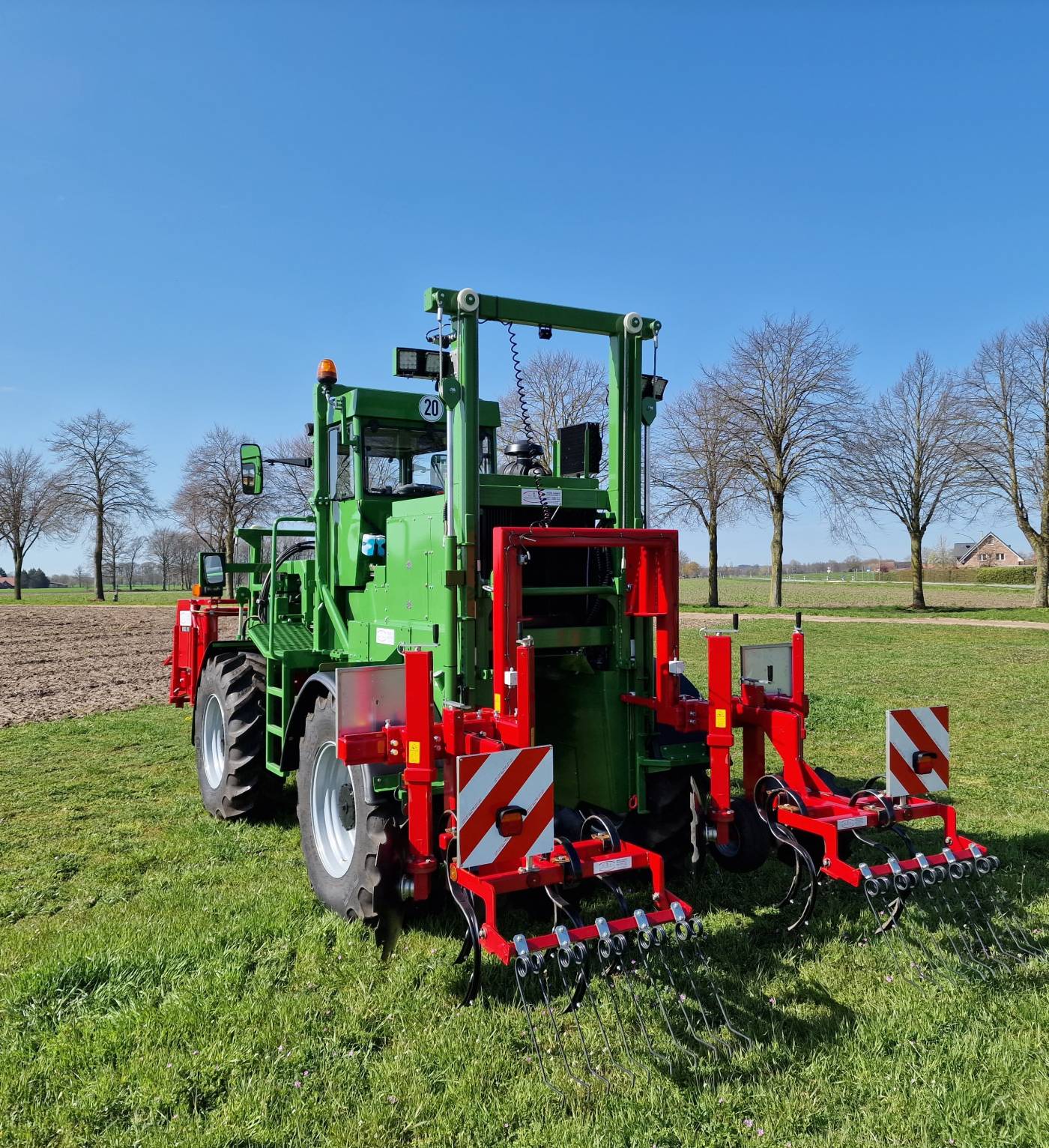

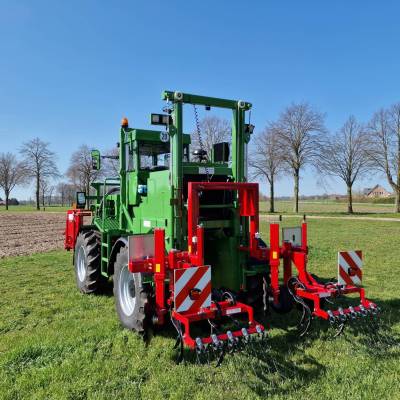

    • Rear-mounted hoe for high wheel tractors
      equipped with
      - 2 x support wheel
      - 4 x serrated concave disc
        height adjustable
        Ø 520 mm
      - 2 x 5 cultivation tines
      - 2 x harrow
      - 2 x warning sign
      Passage height: approx. 1550 mm

    Individual modifications regarding equipment, dimensions, etc. on request.
