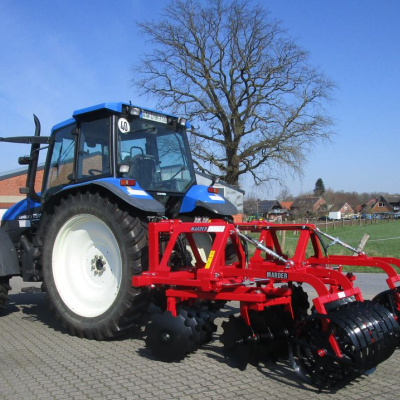

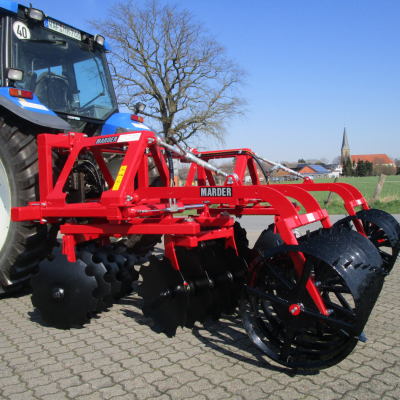

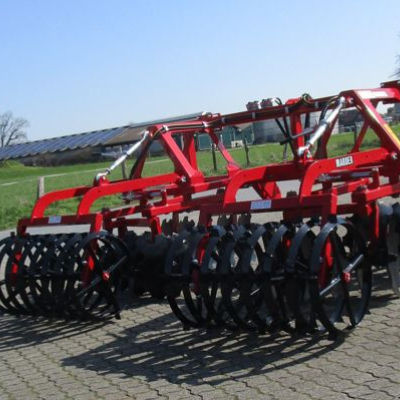

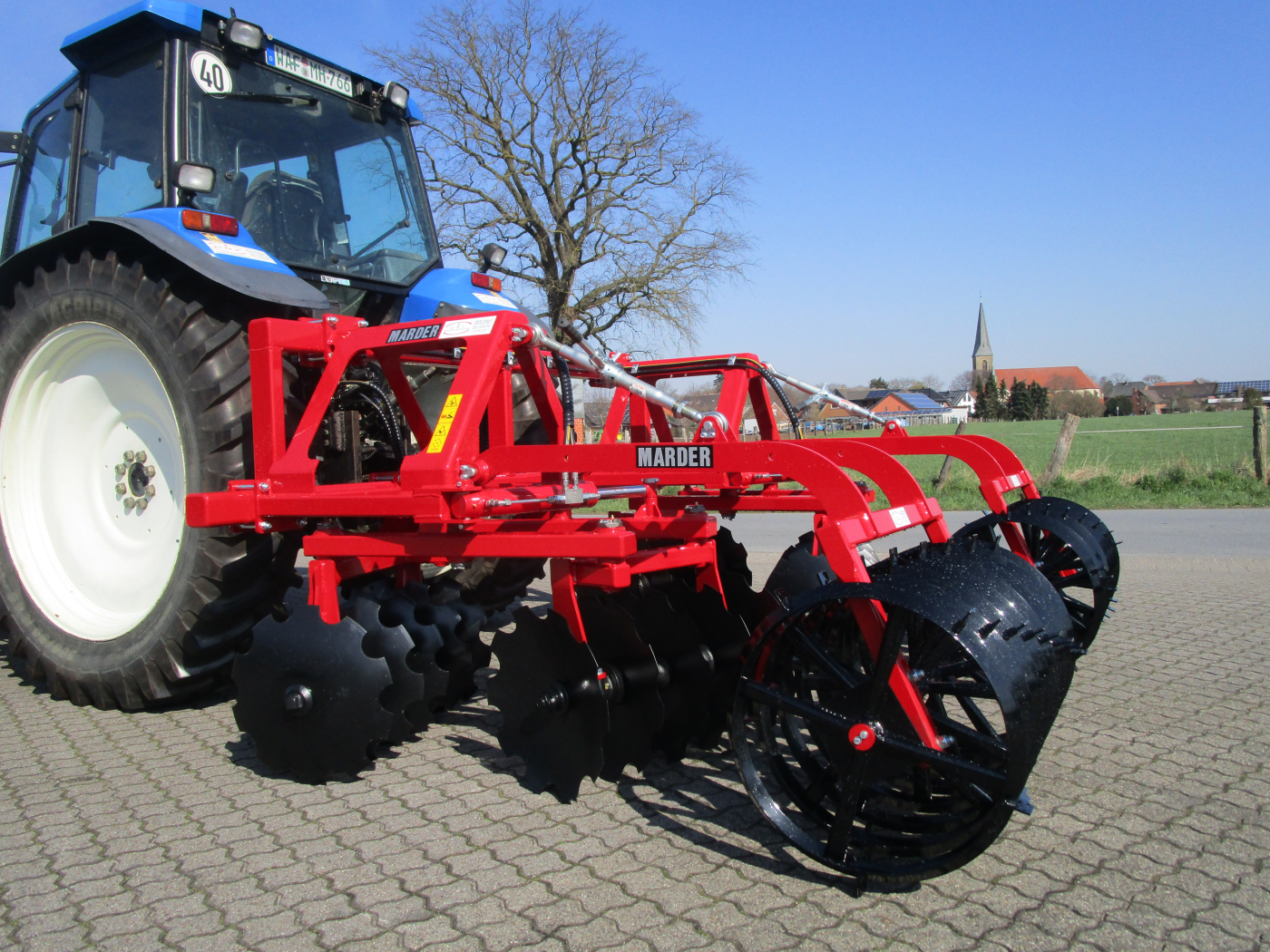

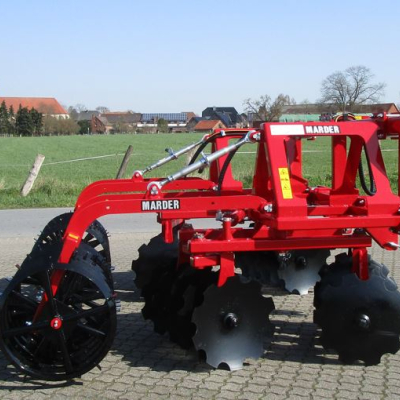

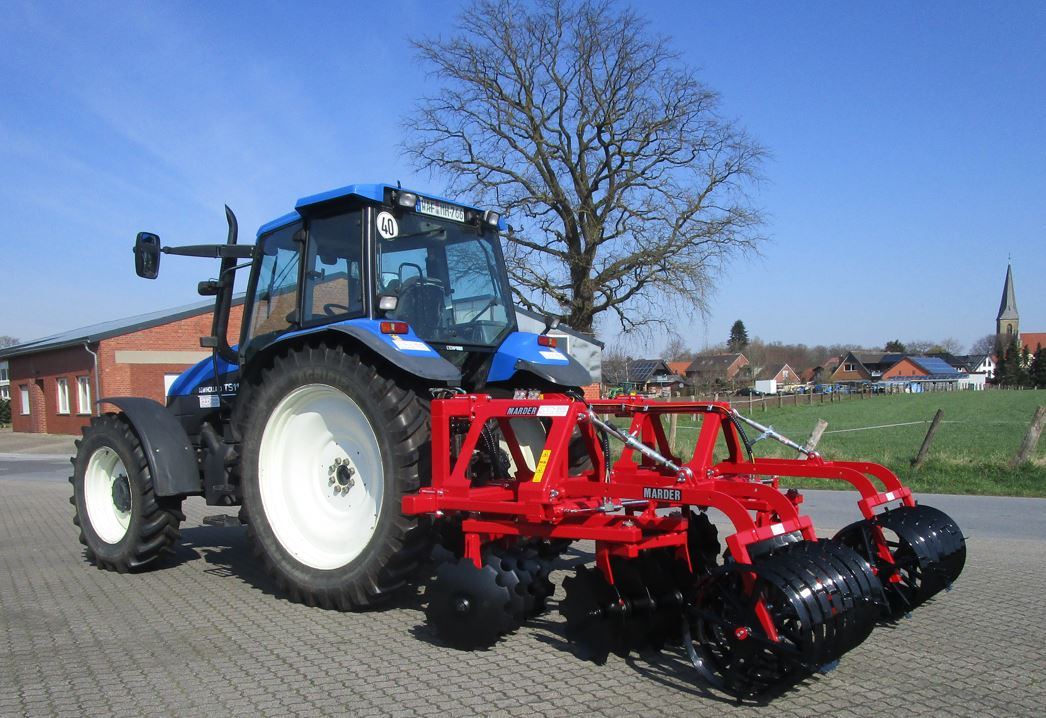

Disc harrow MARDER

Cultures:
White asparagus
Green asparagus
  • Image gallery:
    1_Foto_5_copy_1_copy_1

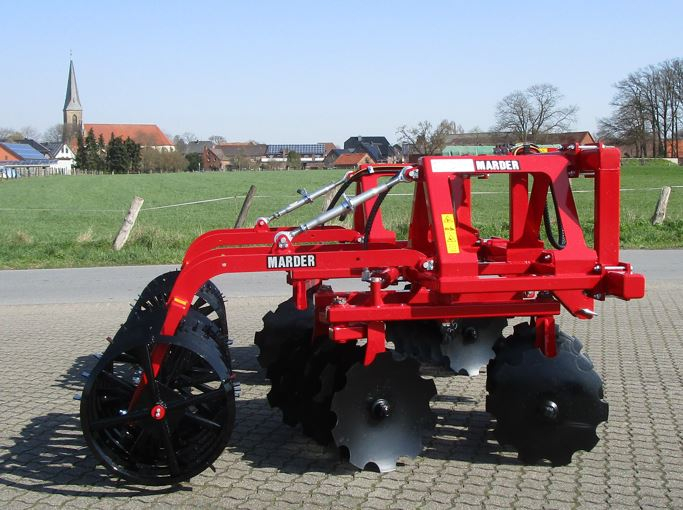

    2_Foto_3_copy_1_copy_1

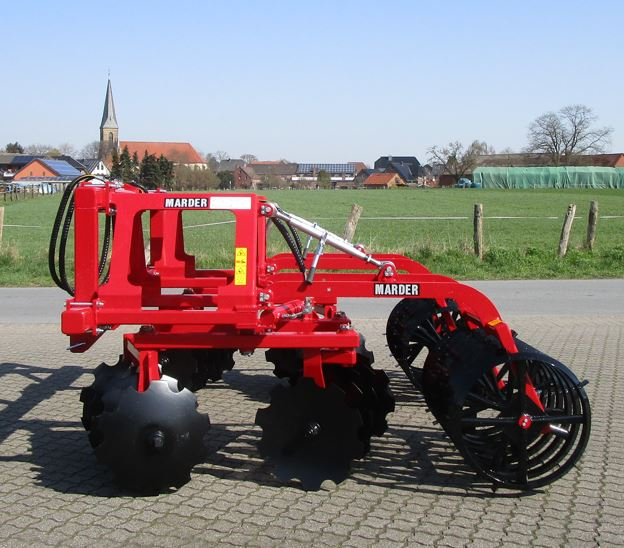

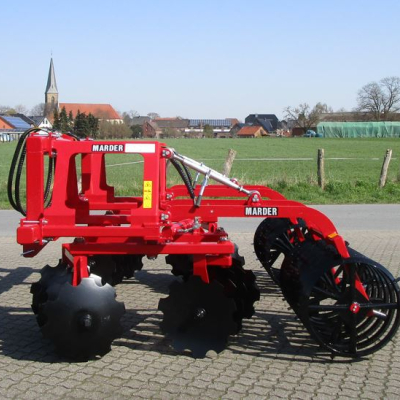

    3_Foto_4_copy_1_copy_1
    4_Foto_8_copy_1_copy_1

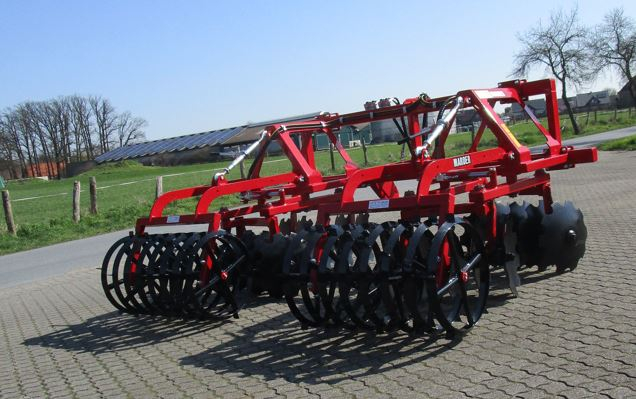

    5_Foto_2_copy_1_copy_1

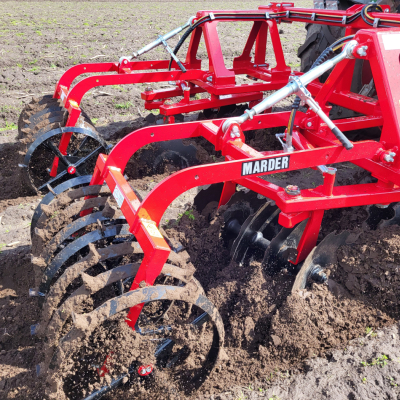

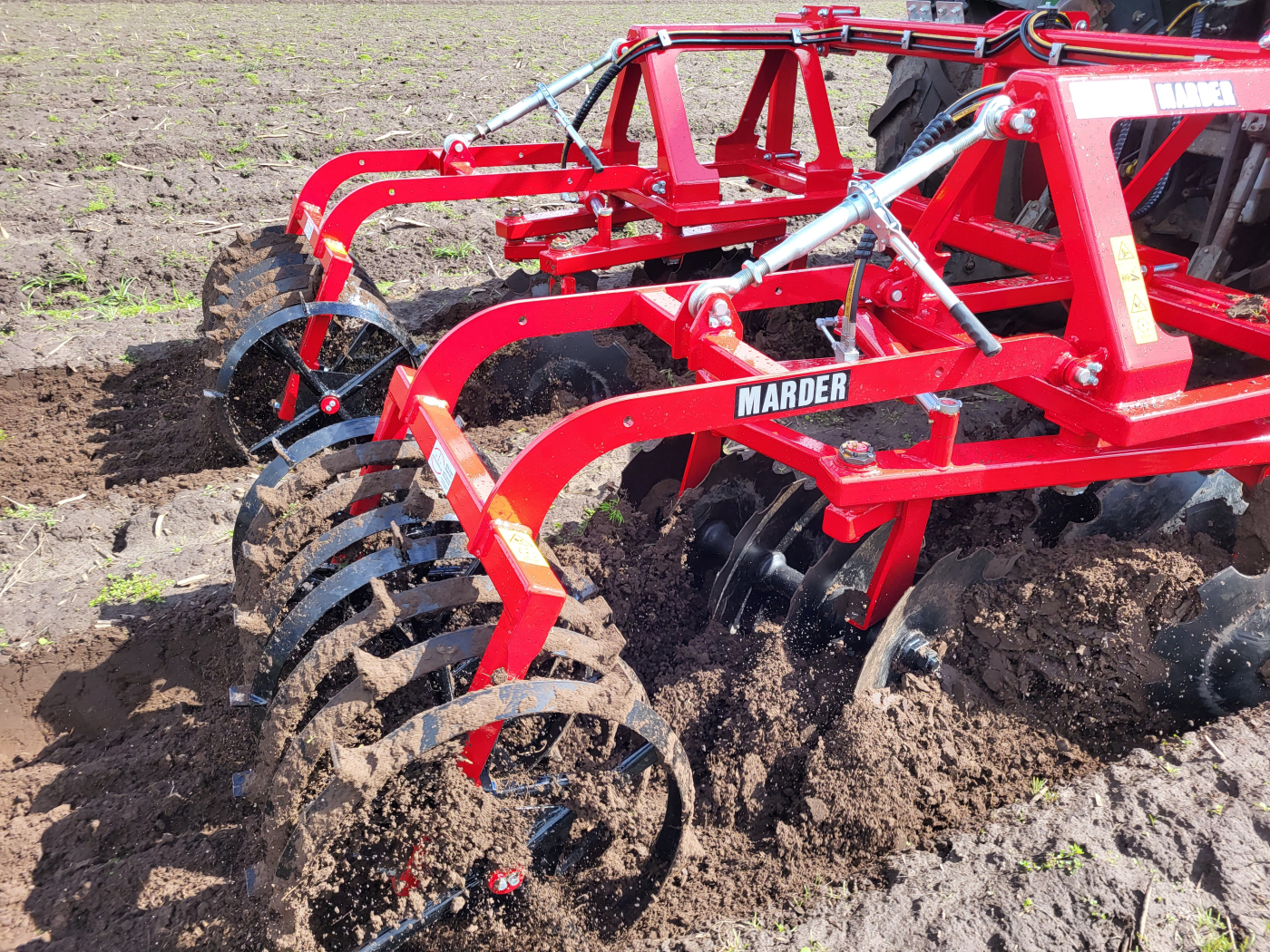

    6_Foto_14_copy_1_copy_1

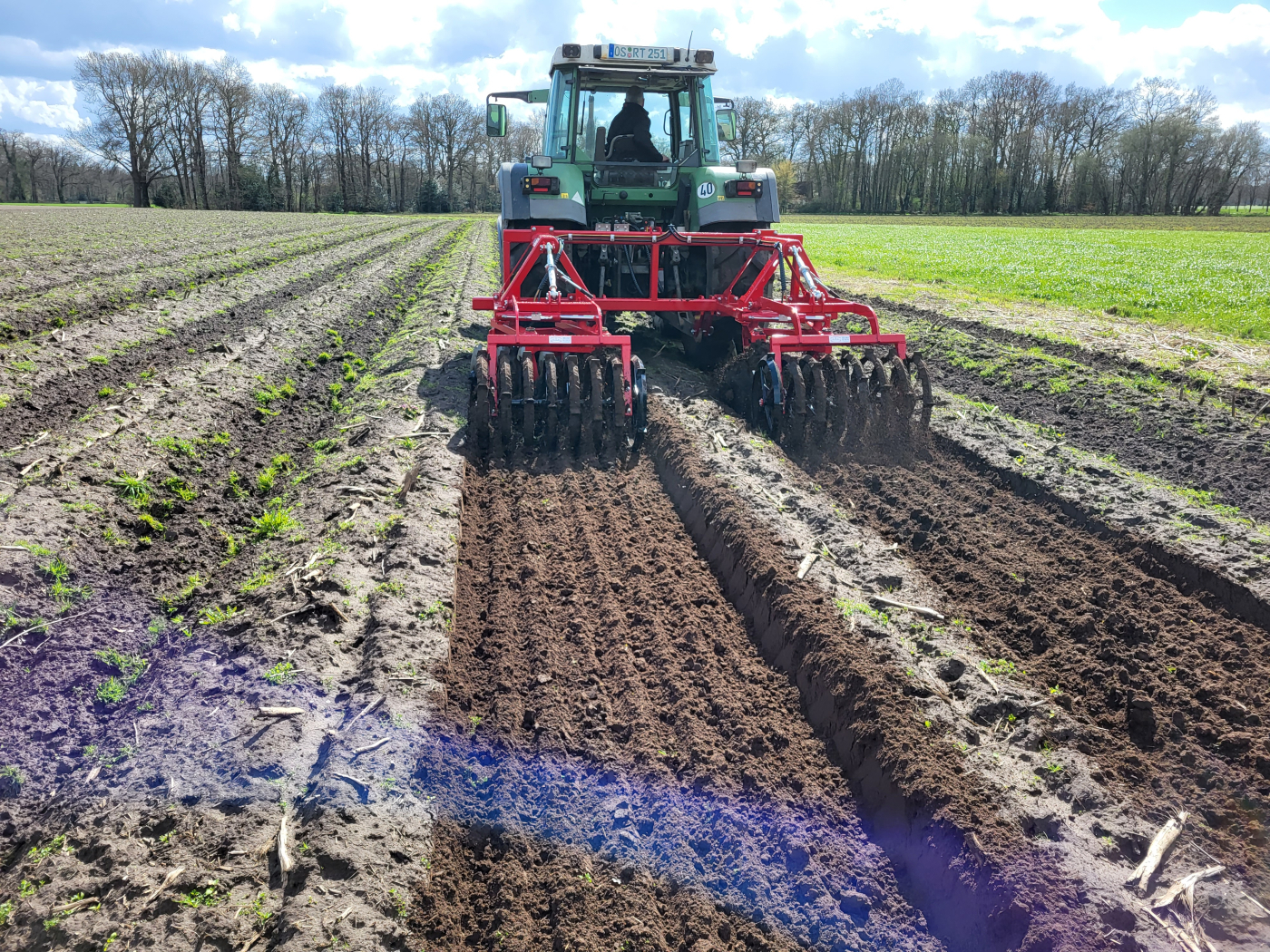

    7_Foto_15_copy_1_copy_1

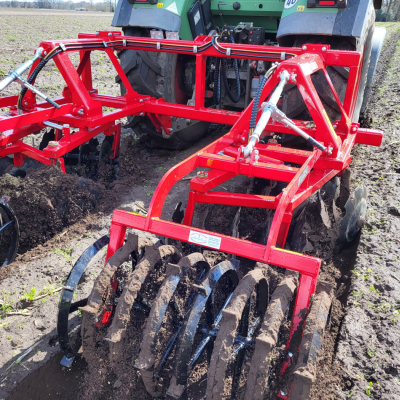

    8_Foto_16_copy_1_copy_1
    Watch video
  •

    Disc harrow


        Front disc harrow Tukan 110 Tukan 150 Milan Marder 1,8 Marder 2,0

    Tractor   Standard tractor Narrow-track tractor Narrow-track tractor  Narrow-track tractor Standard tractor Standard tractor
    Tractor attachment   Front attachment  Rear attachment  Rear attachment Rear attachment Rear attachment Rear attachment
    Cutting wild herbs   + + + + - -
    Incorporating wild weeds   - - - - + +
    Soil loosening in the tramline   + + + + + +
    Soil conditions   Lighter soils Lighter soils Lighter soils Also heavier soil Also heavier soils Also heavier soils
    Disc type   Crosscutter        disc Smooth concave disc   Smooth concave disc   Crosscutter        disc Serrated concave   disc Serrated concave disc
    Disc quantity   2 x 6 2 x 4 2 x 5 10 4 x 5 4 x 6
    Ø Disc approx. 440 mm 510 mm 510 mm 440 mm 510 mm 510 mm
    Individual disc bearing   + - - + - -
    Roller type   - Tube bar roller Tube bar roller Ring roof roller Tube bar roller Tube bar roller
    Number of rollers   - 1 1 1 2 2
    Roller width approx. - 1000 mm 1000 mm 1300 mm 1000 mm 1150 mm
    Height-adjustable support wheel   2 - - 2 - -
    Deep cultivator handle with chisel coulter   - - - 5 - -
    Levelling disc   - - - 4 - -
    Harrow tine   - - - 10 - -
    Warning sign   - - - - 2 2
    Hydraulically adjustable working width   - + + - + +

    Working width

    Row distance

    approx.

    approx.



    1900 mm

    1100 - 1300 mm



    1300 - 1500 mm



    1300 mm



    1000 - 1300 mm per frame

    1800 mm

    1150 - 1500 per frame

    2000 mm

    Dimensions

    L x W x H

    approx.



    1500 x 2950 x

    1100 mm

    2370 x 985 x

    1060 mm

    2370 x 985 x

    1060 mm

    4940 x 1430 x

    1250 mm

    2500 x 2900 x

    1400 mm

    2500 x 3000 x

    1400 mm

    Weight approx. 538 kg 580 kg 612 kg 1300 kg 665 kg 690 kg
  • Function / Application:

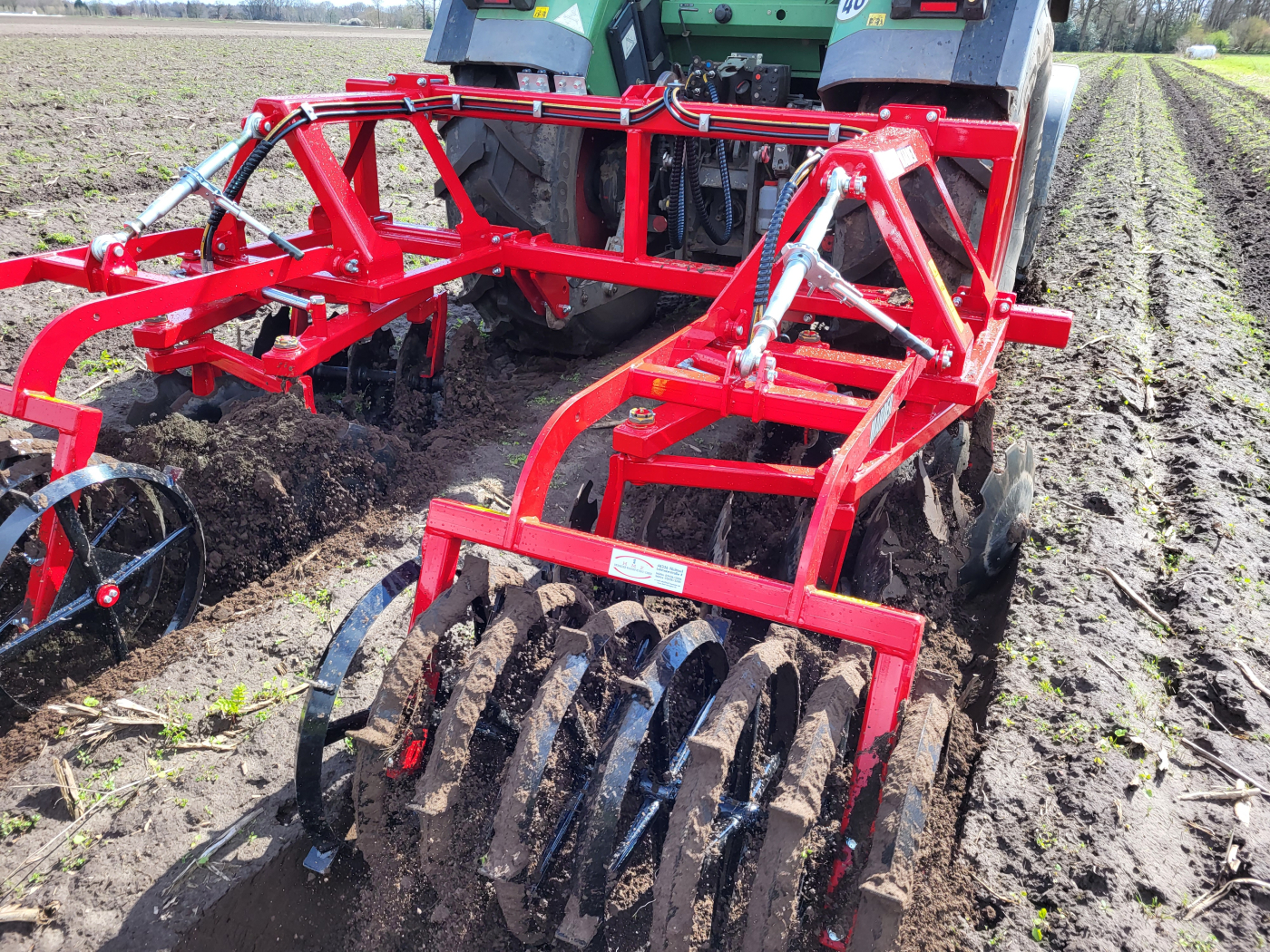

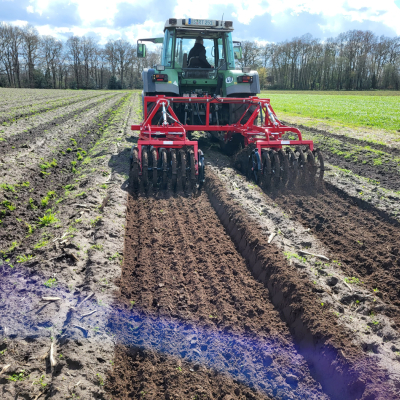

    for shallow tillage between the dams with standard tractors

    1. Soil can be removed from the dam
    2. Soil can be thrown onto the dam
      = mechanical weed control
    Basic equipment:
    • 1 x Three-point support cat. 2
    • 2 x Sturdy frame
    • 2 x Parallelogram segment
    • 4 x Disc segment each consisting of:
      • o Serrated hollow disc
        = no cutting but under-working the wild weeds
        Ø approx. 510 mm
        No individual bearing
        = no flexible adaptation to the height of the existing floor
      • o Bearing and spacers
    • 2 x Tube roller bar
    • Disc segments hydraulically adjustable laterally in pairs to determine the working width and mode of operation a) or b)
    Accessories / Variations:
    • Two different working widths
    • Serrated crosscutter disc Ø approx. 440 mm
      = cutting up the plant residues and wild herbs
    • Different roller types (according to soil condition)
    • Seed drill for intercroping
      = more moisture in the soil
      = fewer wild weeds
      = nitrogen enrichment in the soil due to under-working of the intercroping

    Individual modifications regarding equipment, dimensions, etc. on request.
