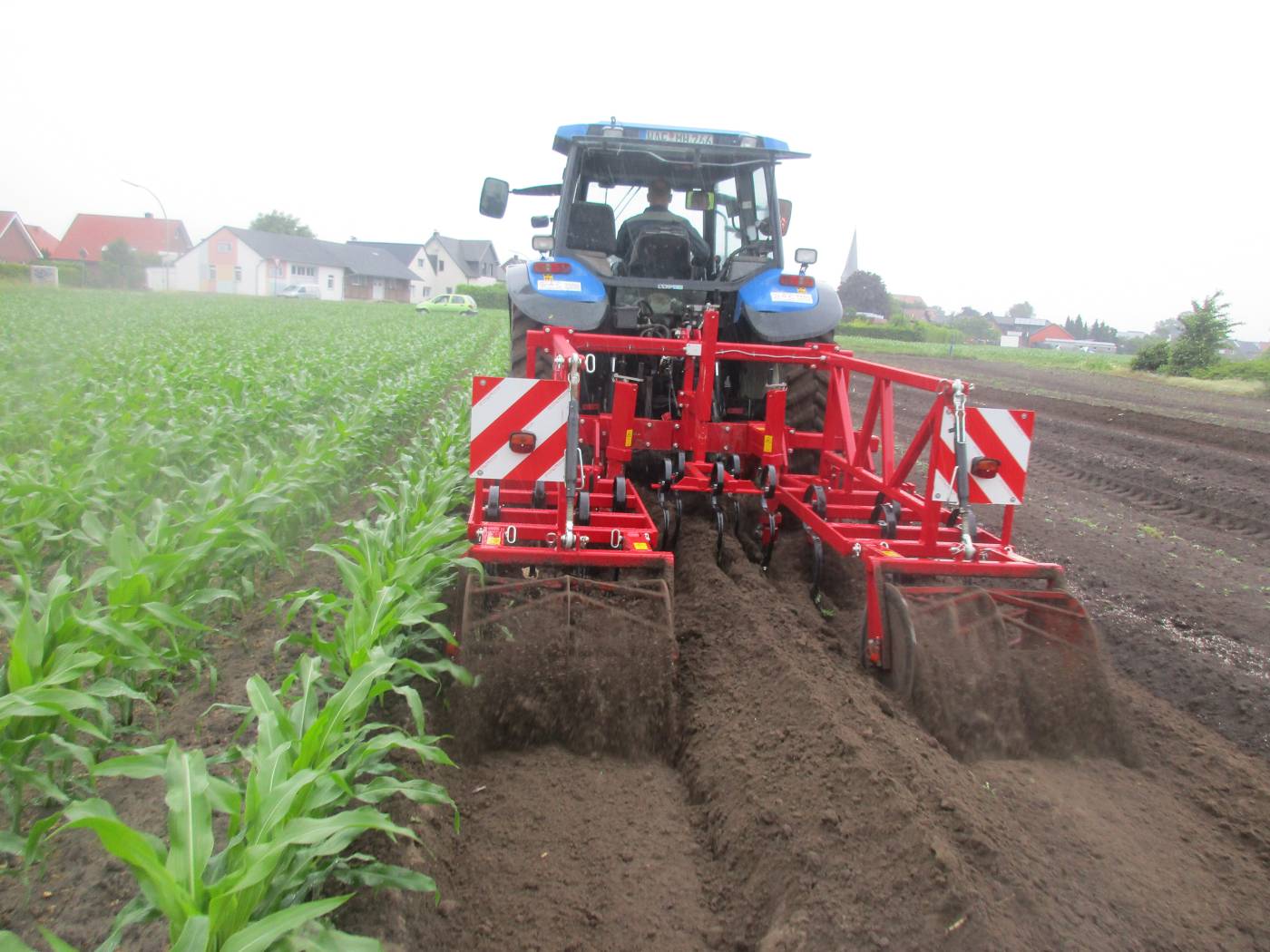

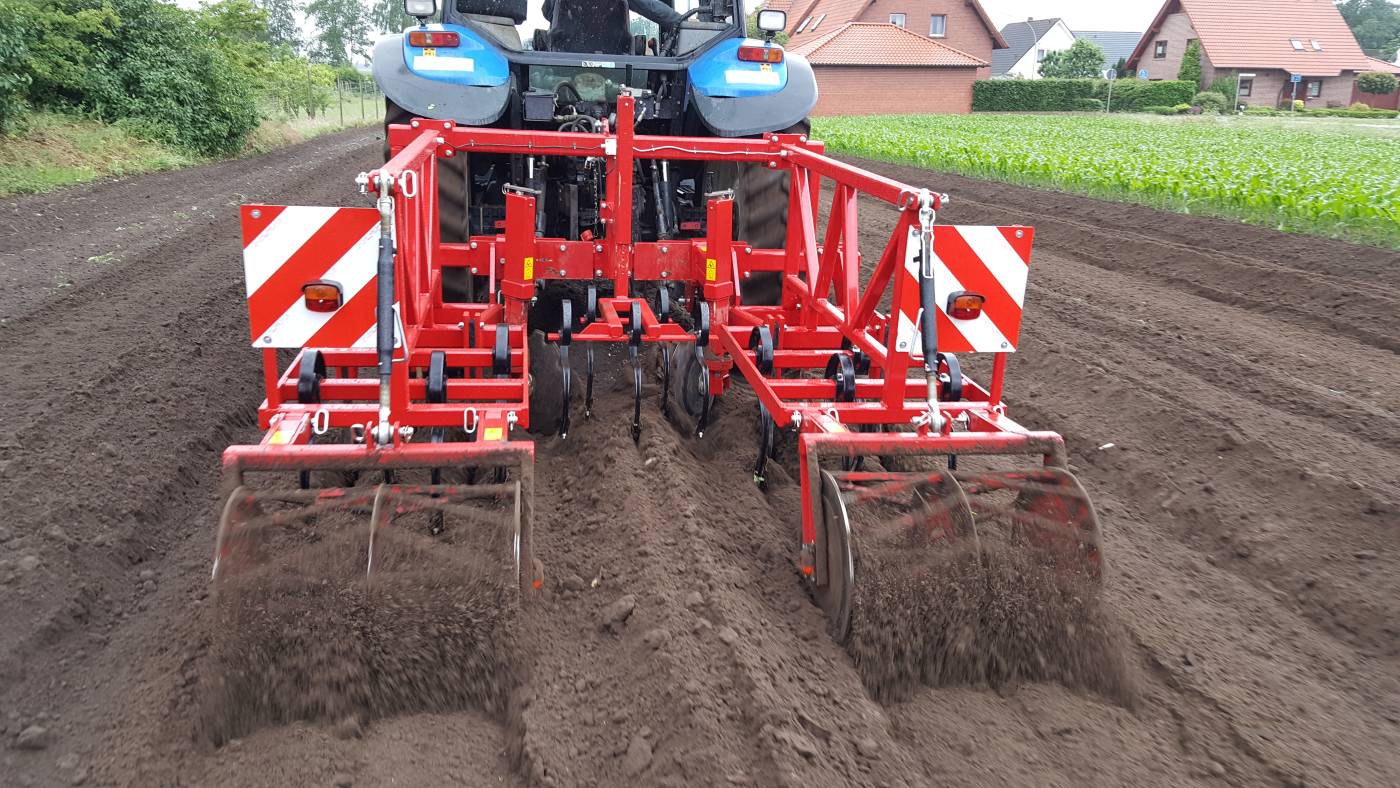

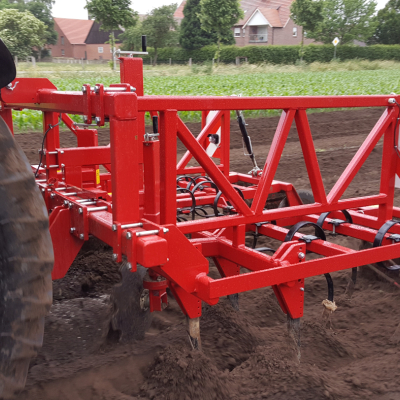

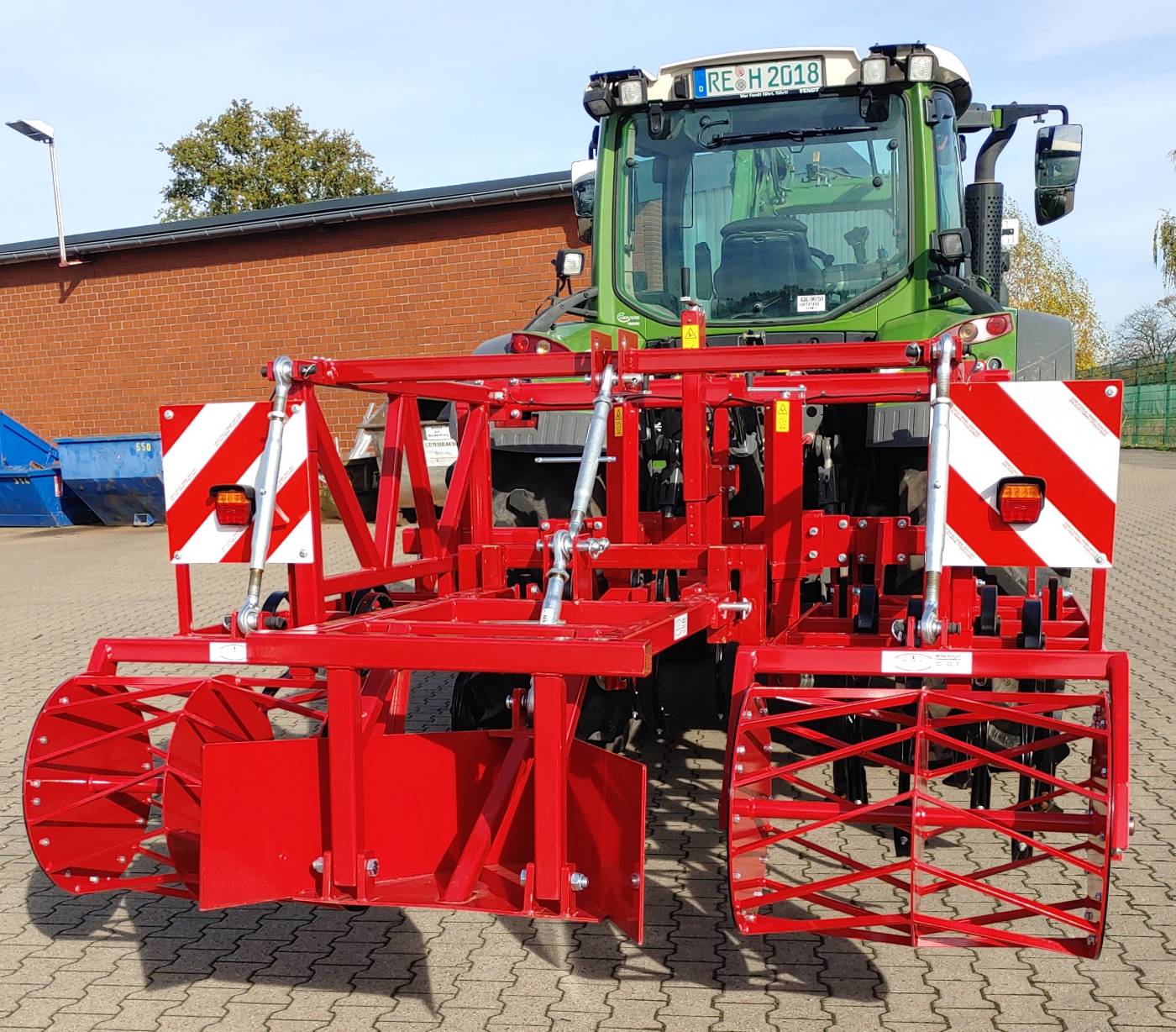

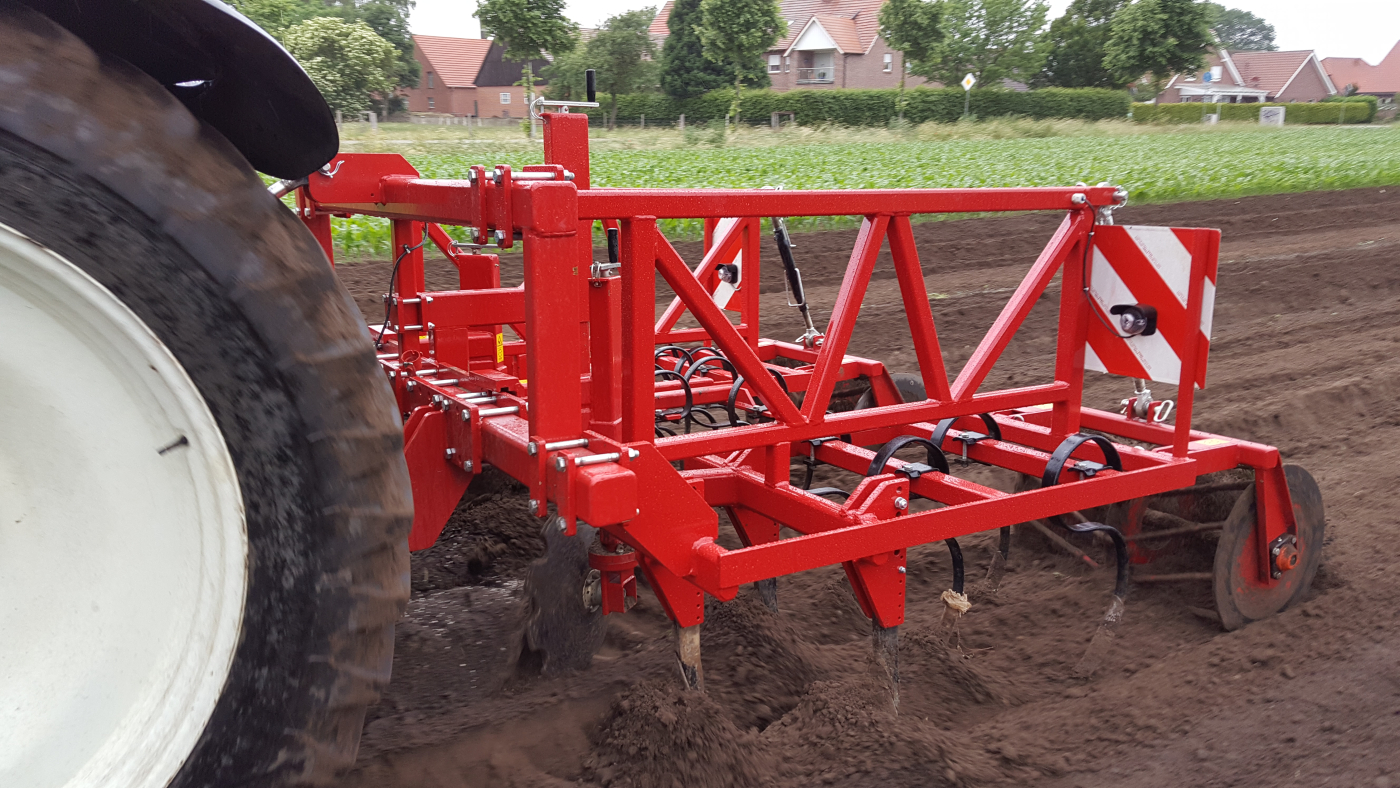

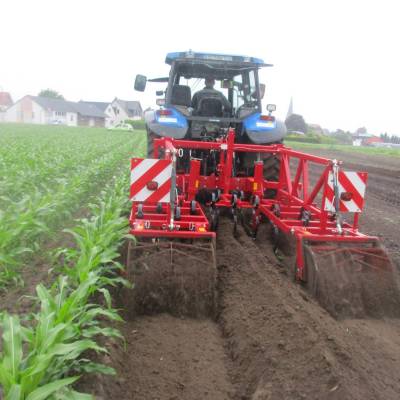

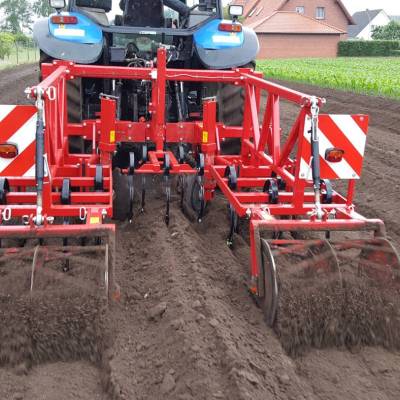

IGEL

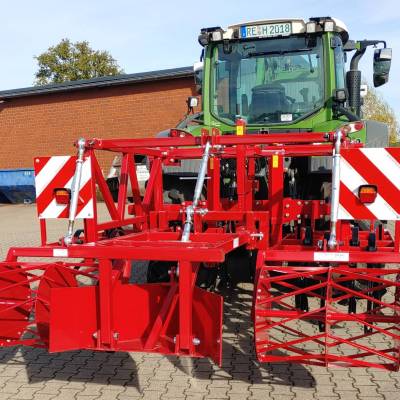

IGEL

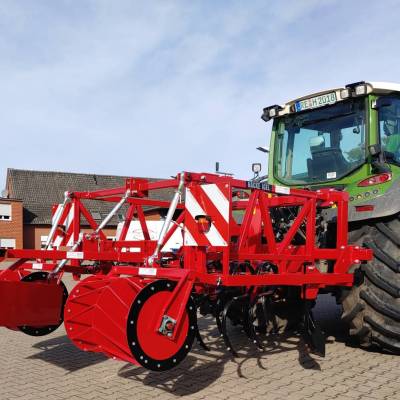

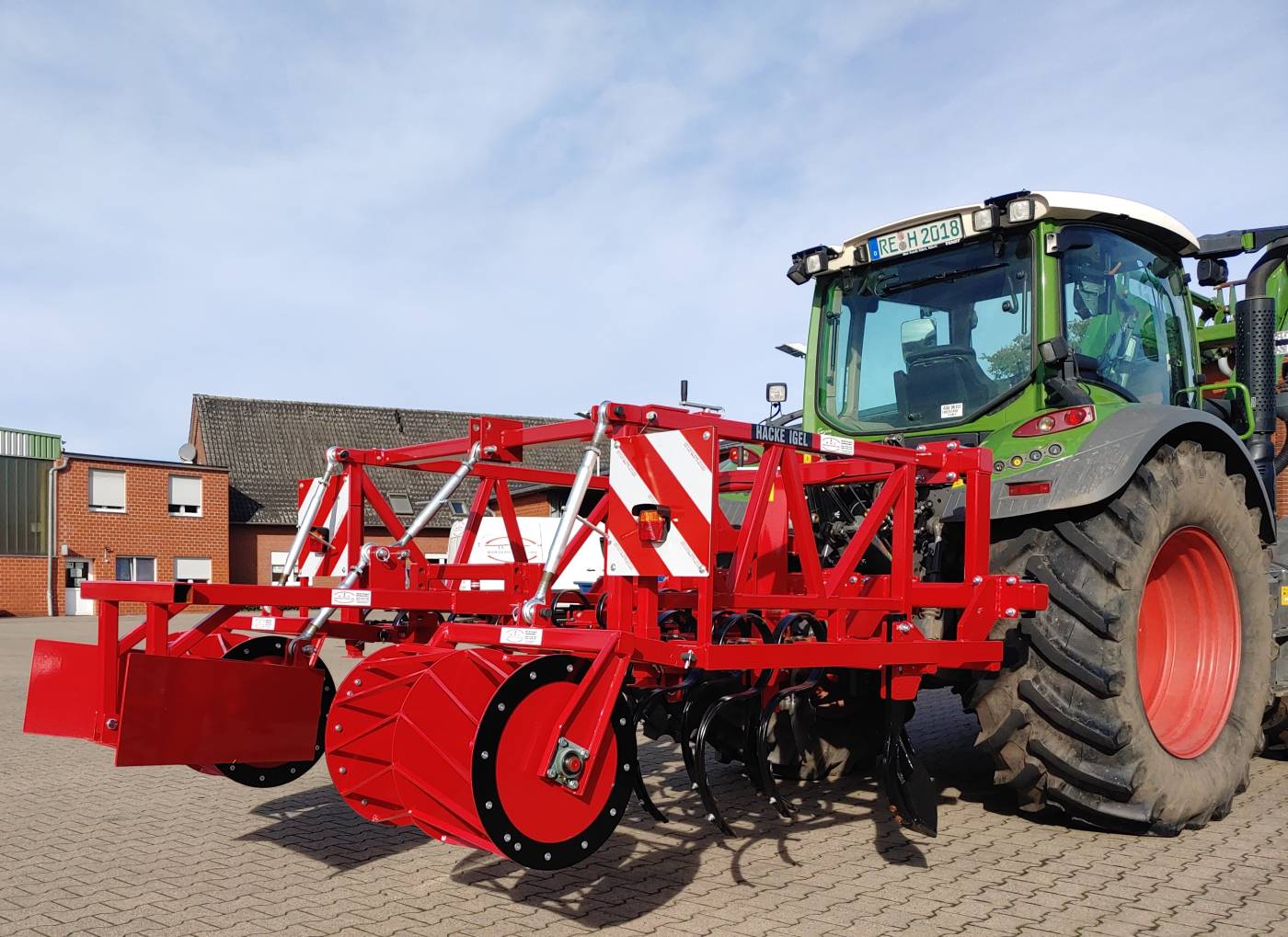

IGEL

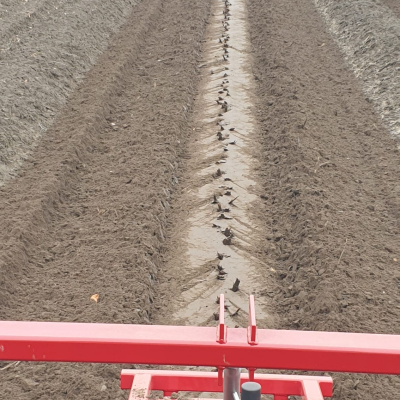

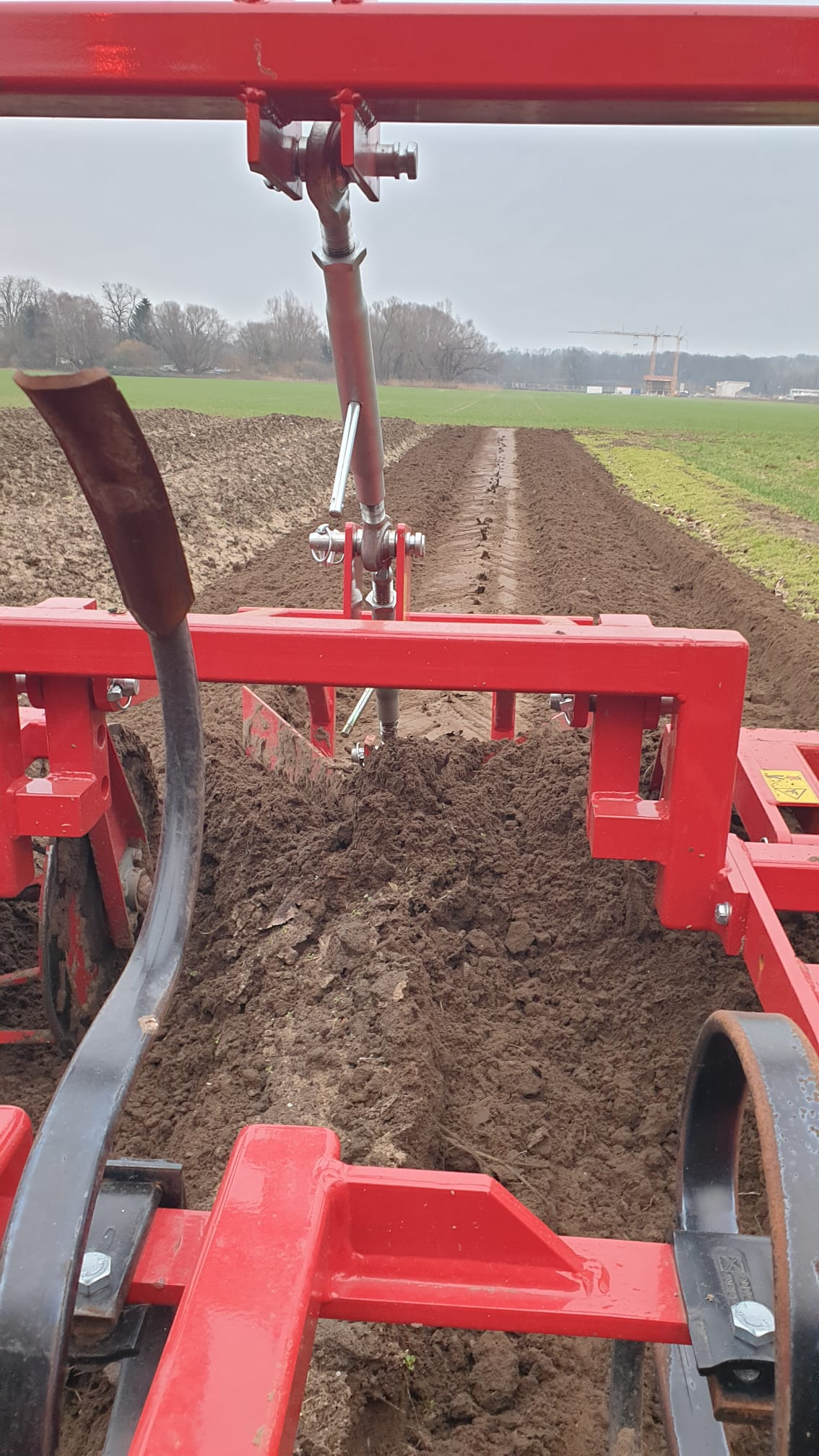

IGEL with wedge-shaped distribution body

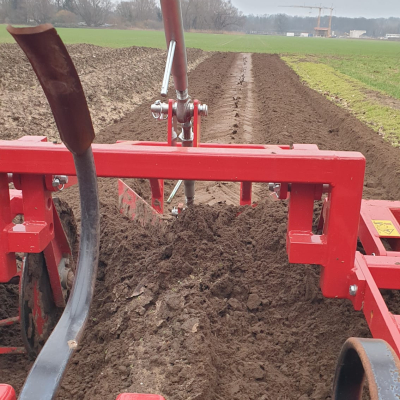

IGEL with wedge-shaped distribution body

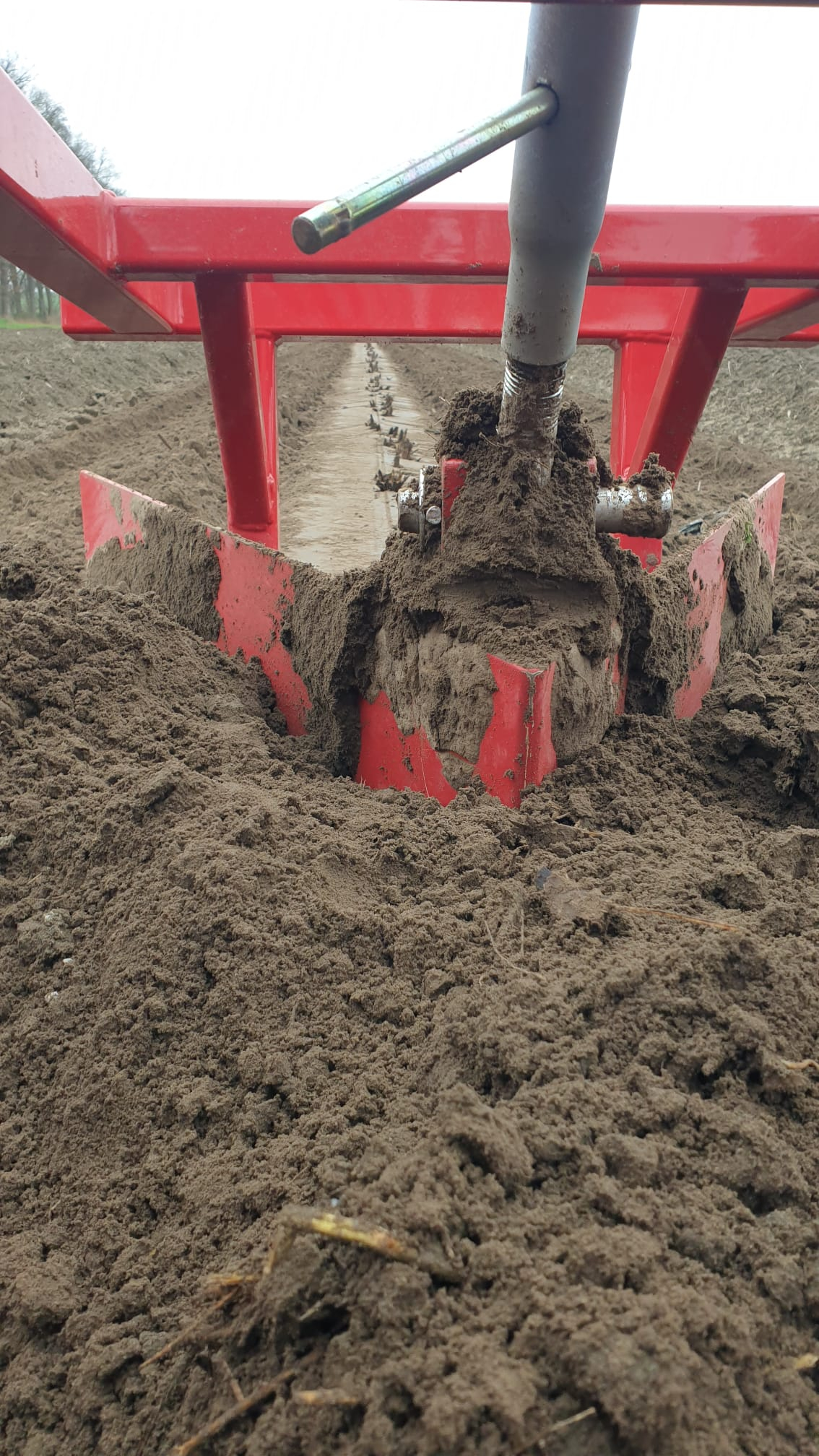

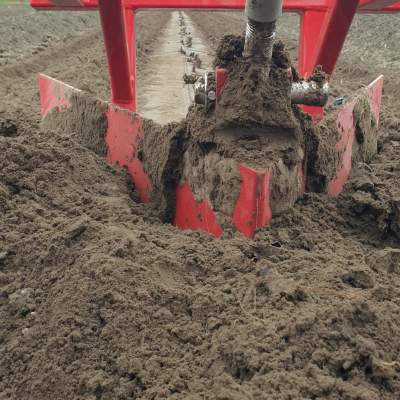

Accessory: wedge-shaped distribution body

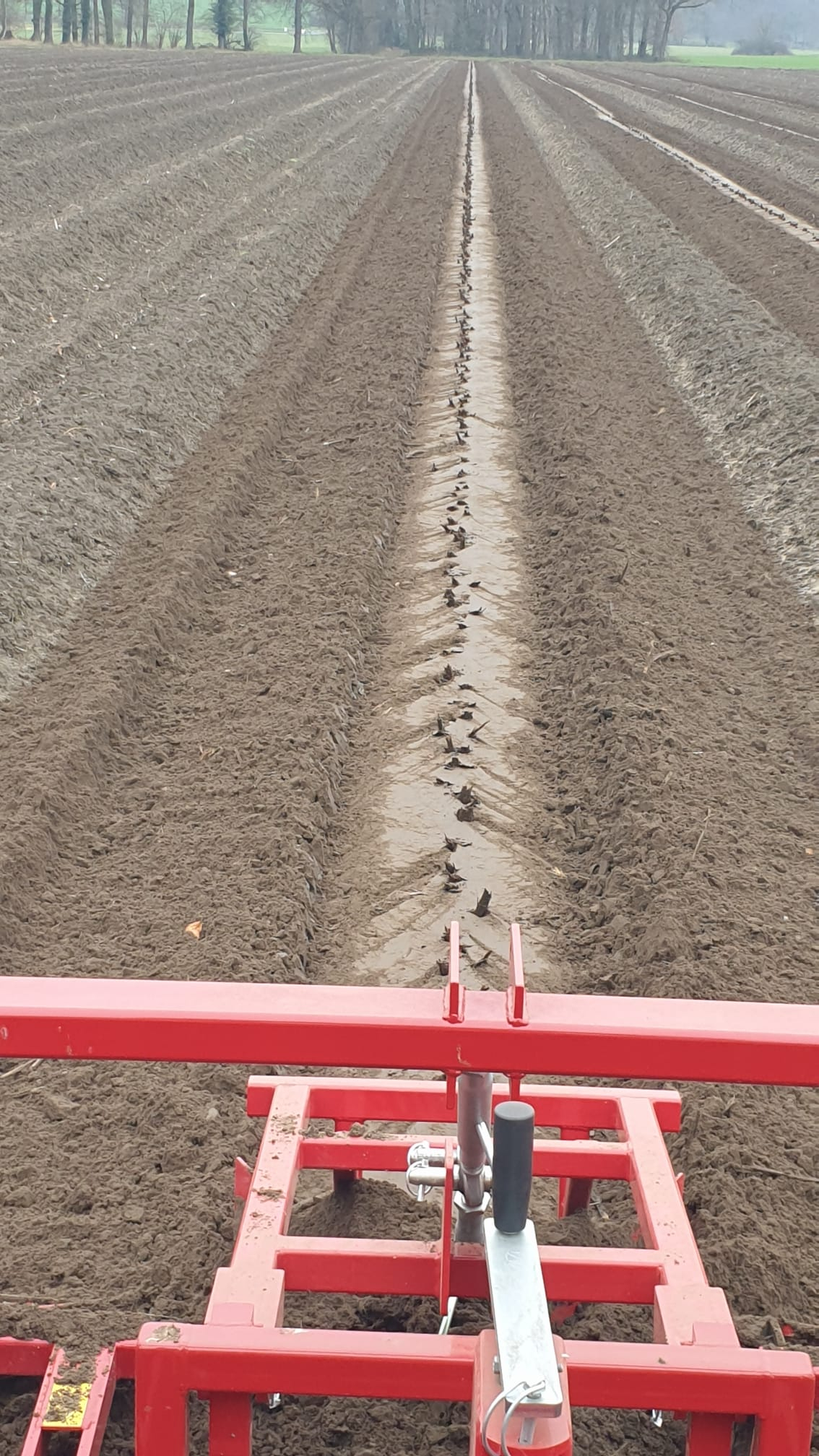

Accessory: wedge-shaped distribution body
Accessory: wedge-shaped distribution body
-
Basic equipment
IGEL ILTIS DACHS Row distance from approx. 1600 mm 1600 mm 1800 - 2500 mm Power requirement from approx. 90 hp 90 hp 140 hp Dimensions LxWxH approx. 2885x2490x1460 mm 3100x2470x1970 mm 2940x2960x1640 mm Weight approx. 860 kg 1090 kg 1240 kg Middle chopping frame yes yes yes Hydraulic height-adjustable middle frame no yes no Tube bar roller 2 x 1 2 x 1 + 1 x 1 no Ring roof roller no no 2 x 2 Height and lateral adjustable coulter disc 2 x 1 no 1 x 2 Cultivator tine no no 1 x 8 Tine with heart coulter 2 x 3 2 x 3 no Height adjustable culture harrow tine 2 x 4 2 x 4 + 1 x 8 1 x 5 Height adjustable levelling tine no no 1 x 8 Height adjustable harrow tine no no 1 x 16 Soil conditions Mainly light to medium-heavy soil Mainly light to medium-heavy soil Suitable for all soil types Accessories / Variations
IGEL ILTIS DACHS Wedge-shaped distribution body yes yes no Adapter for the MAULWURF depth spade yes yes yes Different roller types yes yes yes Double-row-design no no yes Three-row-design no yes no Intermediate frame with discs no yes no -
Function / Application:
- for mecanical weed control
- for dam removal and hoeing in asparagus and young plant fields
- for loosening and aerating the soil
- for creating winter damss
- suitable for predominantly light to medium soils
- 2 x Hoe frames each consisting of
1 x Tube bar roller
3 x Tine with heart coulter
4 x Cultivator tine
1 x Coulter disc - 1 x Height-adjustable middle chopping frame
- 2 x Warning sign
Accessories / Variations:Row distance: from approx. 1600 mm Tractor perfomance: from approx. 90 hp Dimensions (LxWxH) approx. 2885 x 2490 x 1460 mm Weight: approx. 860 kg - Different types of rollers depending on soil conditions
- Wedge-shaped distribution body
= for clearing the asparagus dam - Adapter for combination with MAULWURF deep spade
= increased loosening of the soil in the tramlines
Individual modifications regarding equipment, dimensions, etc. possible on request.
