EISFUCHS Rapid cooling

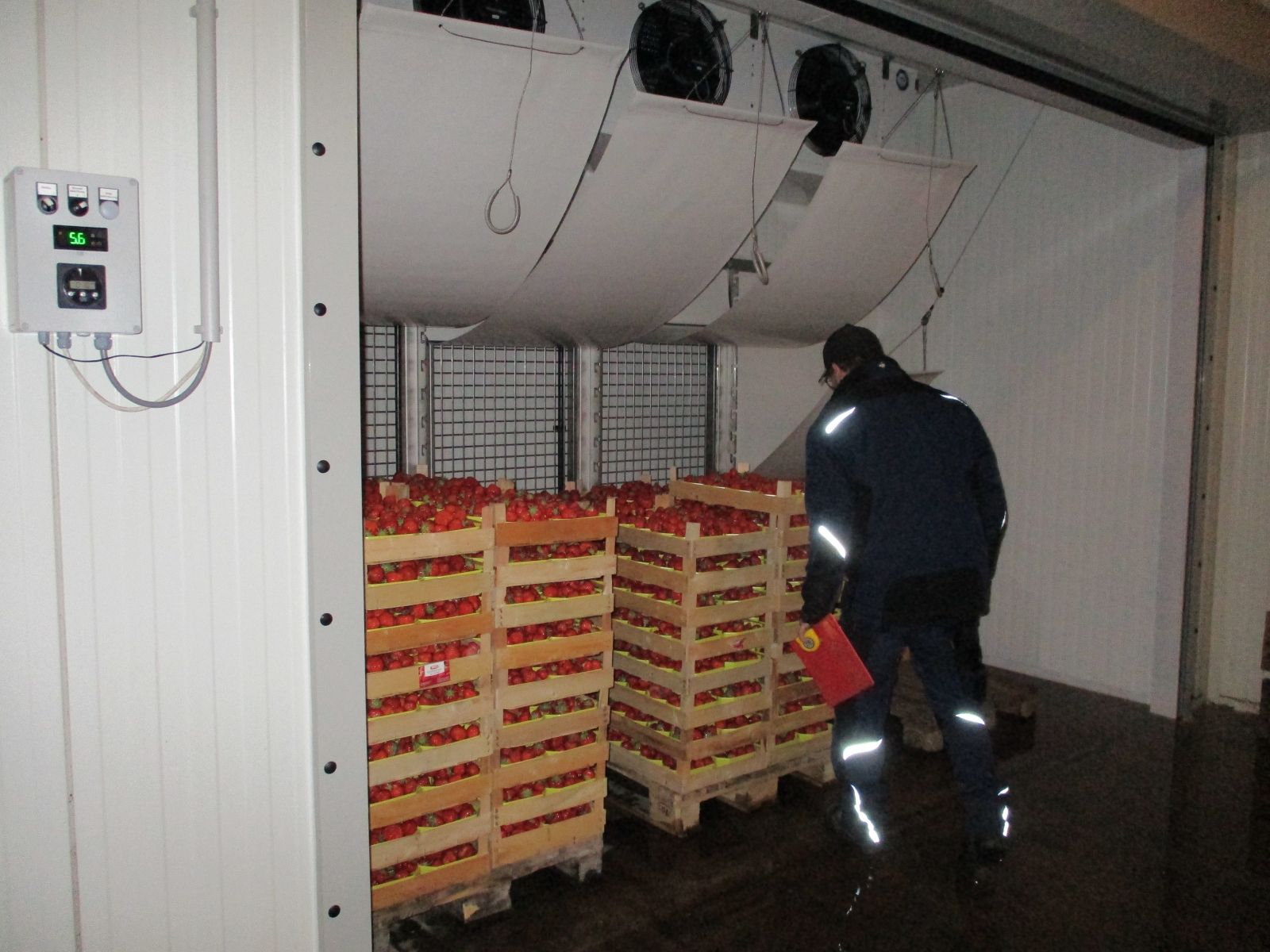

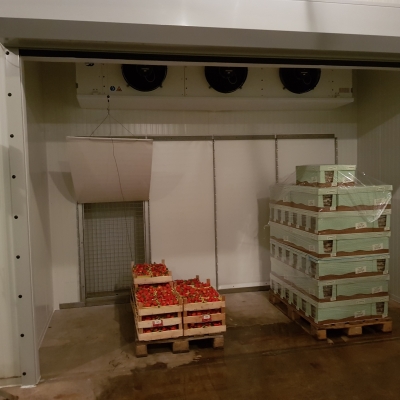

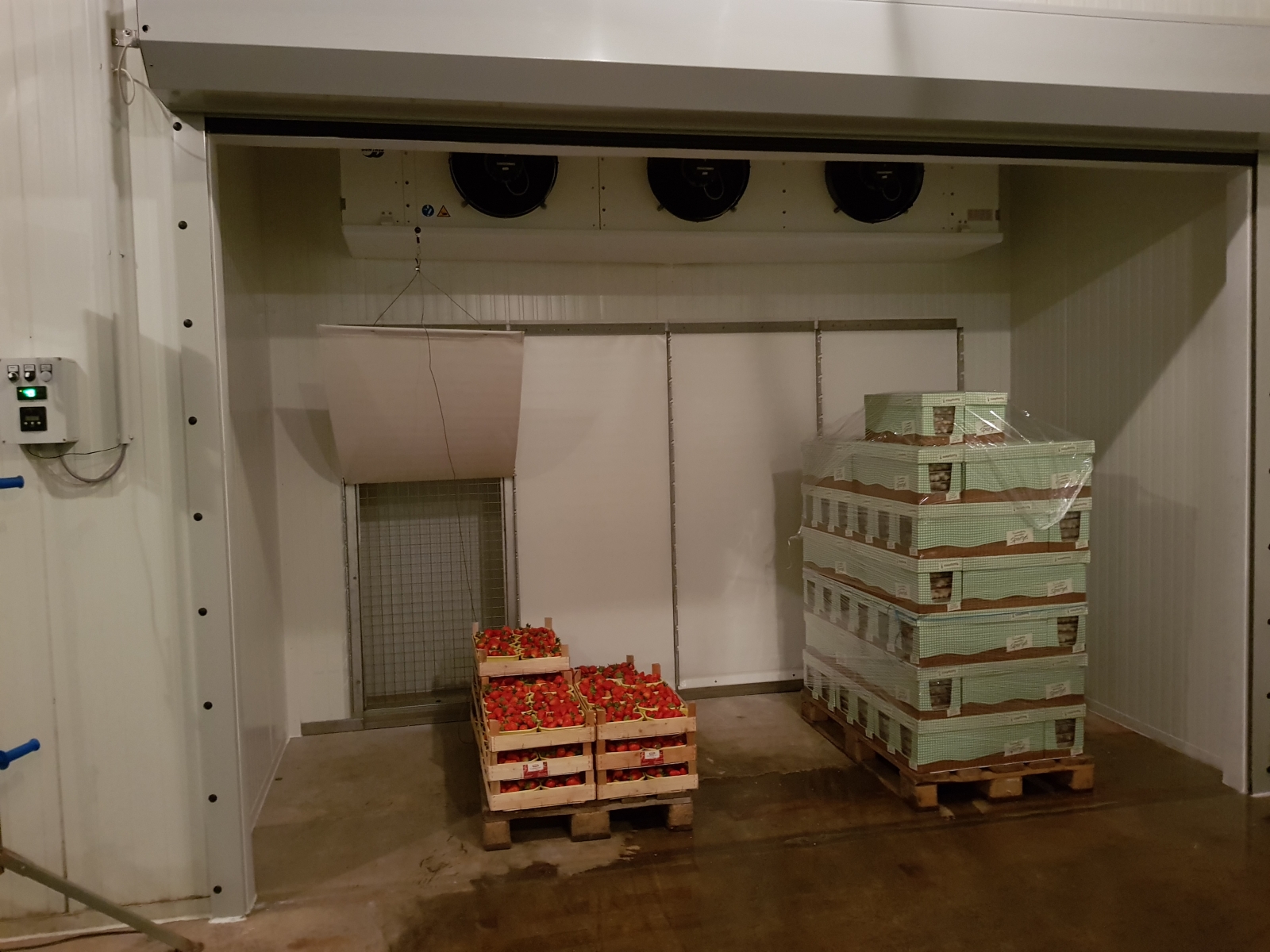

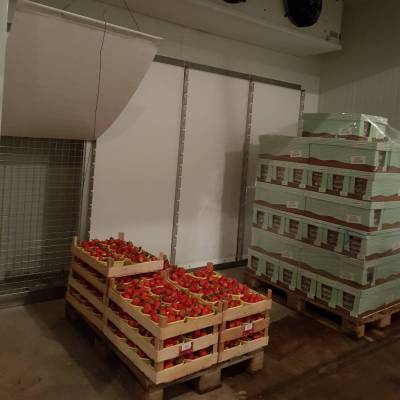

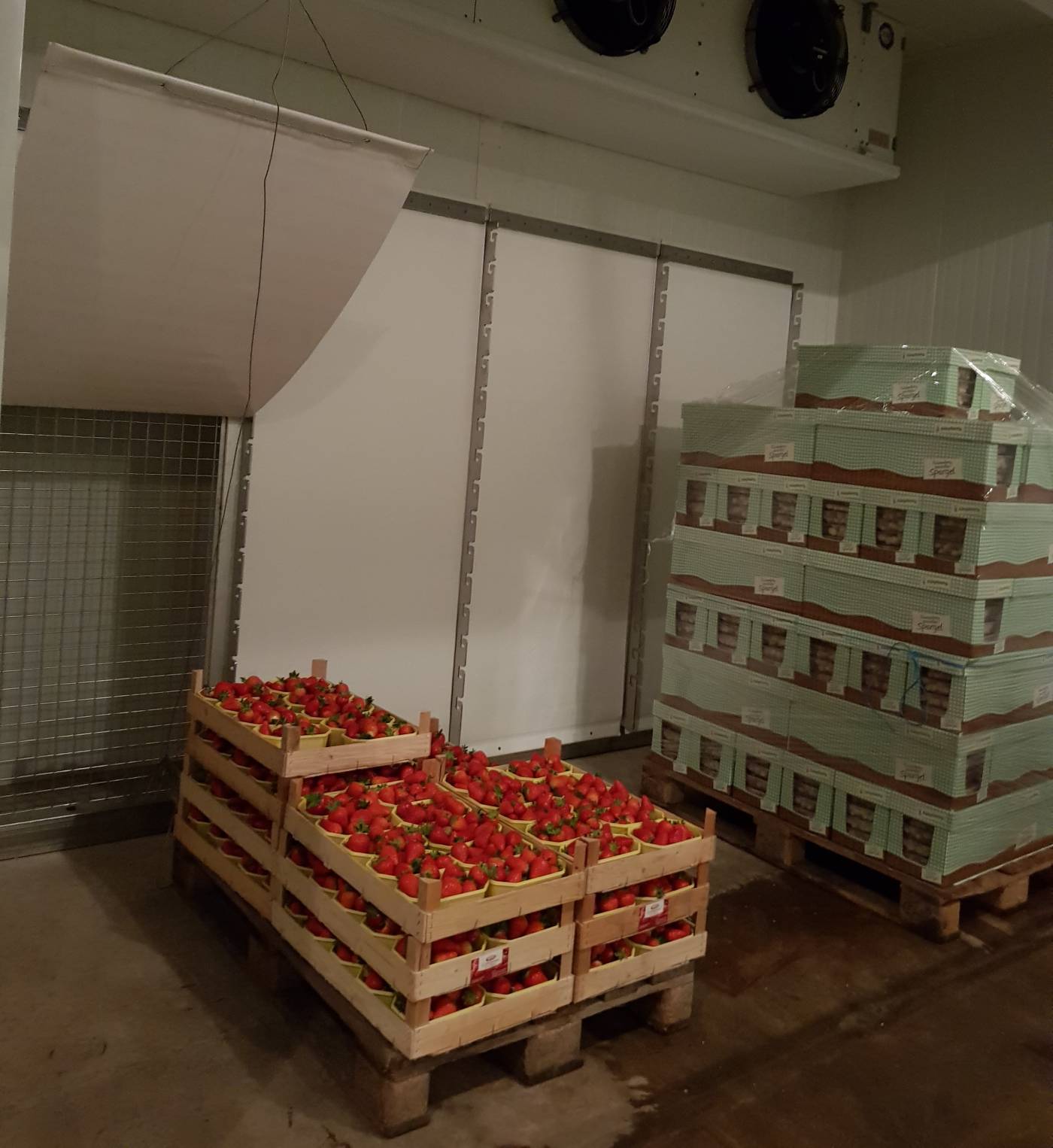

• Cooling room especially for berry fruits for quick cooling down and storage.

• Cold store made of insulated sandwich panels (= ceiling + side walls, without floor)
• Insulation of 100 mm polyurethane, foamed CFC-free
• Sandwich panel surface made of galvanised sheet steel, plastic-coated, colour: white
• Connection of panels with tongue and groove

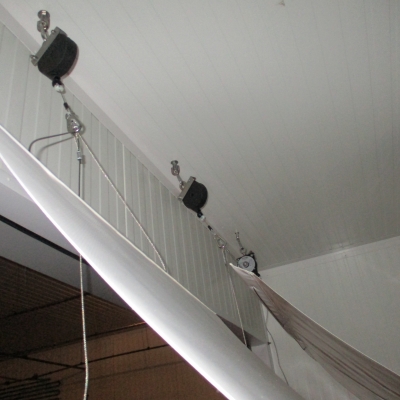

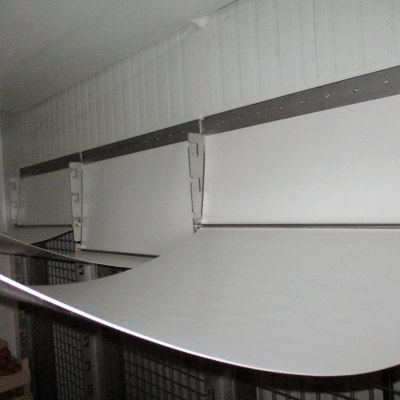

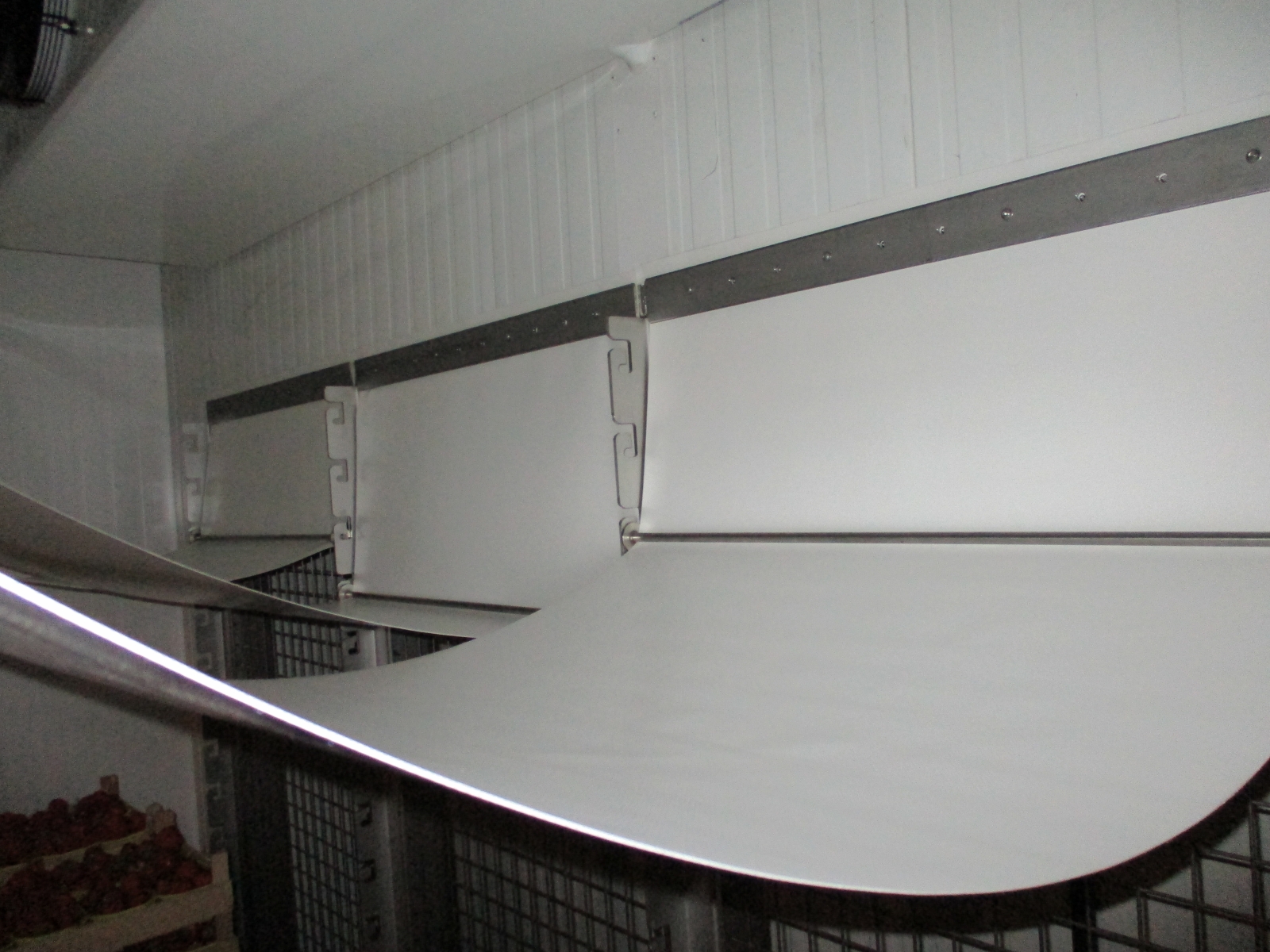

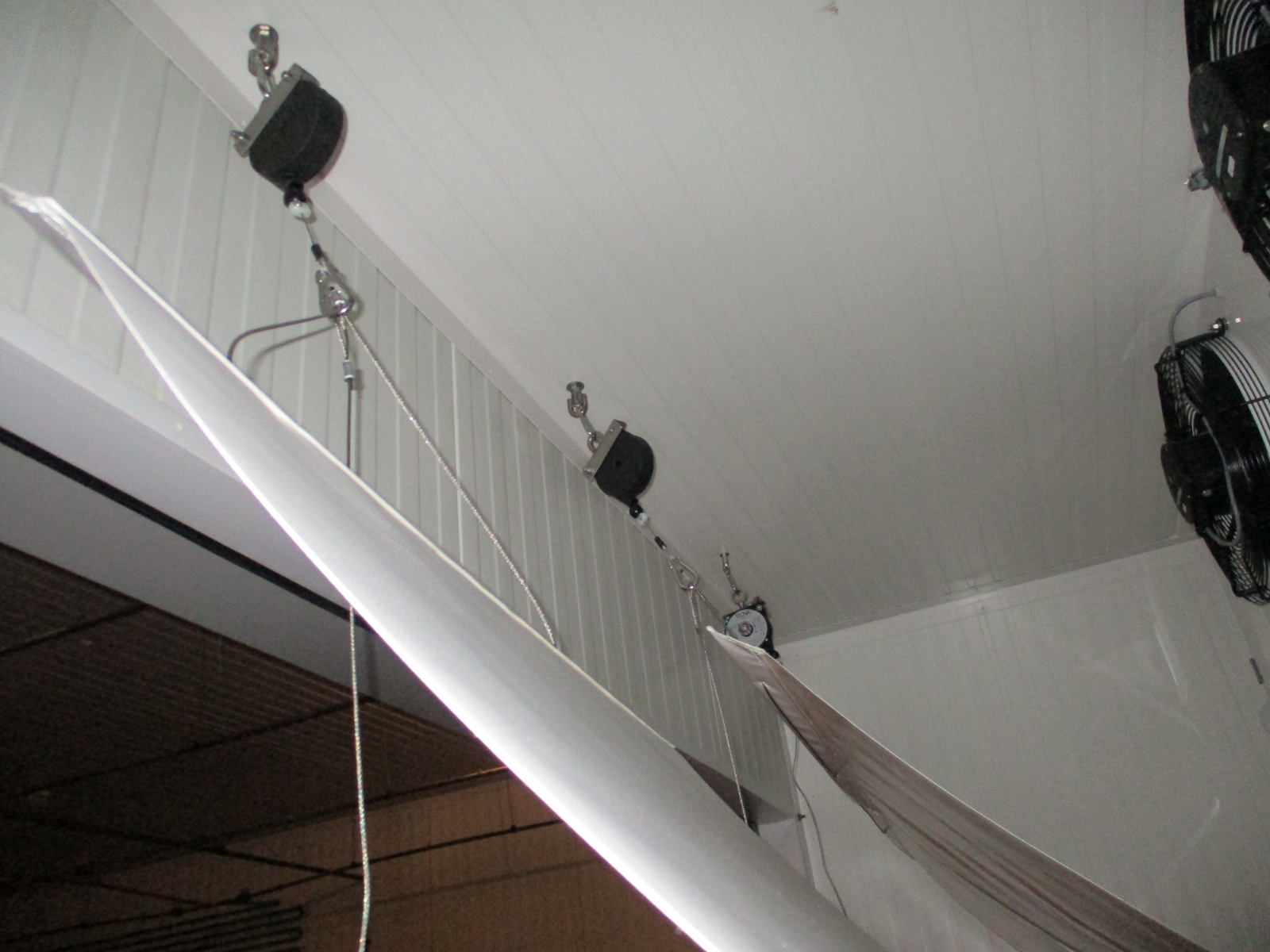

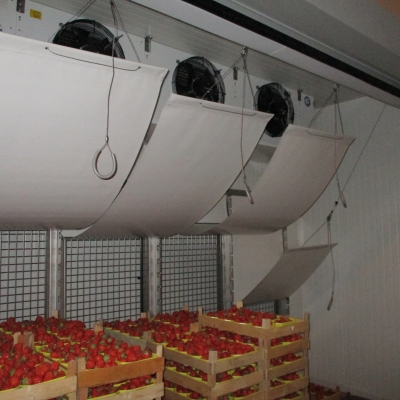

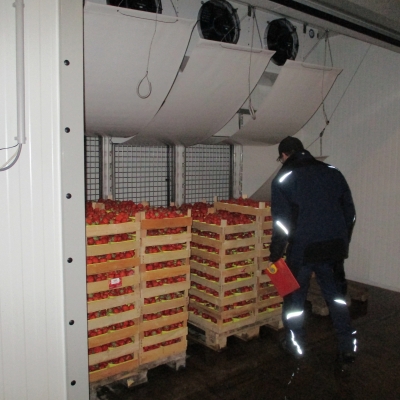

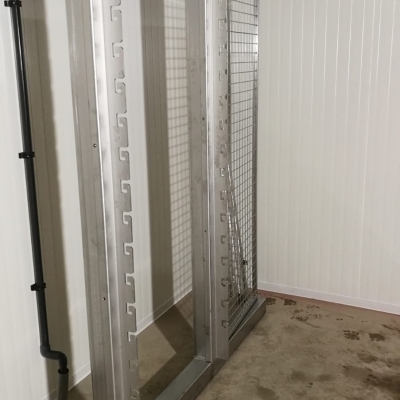

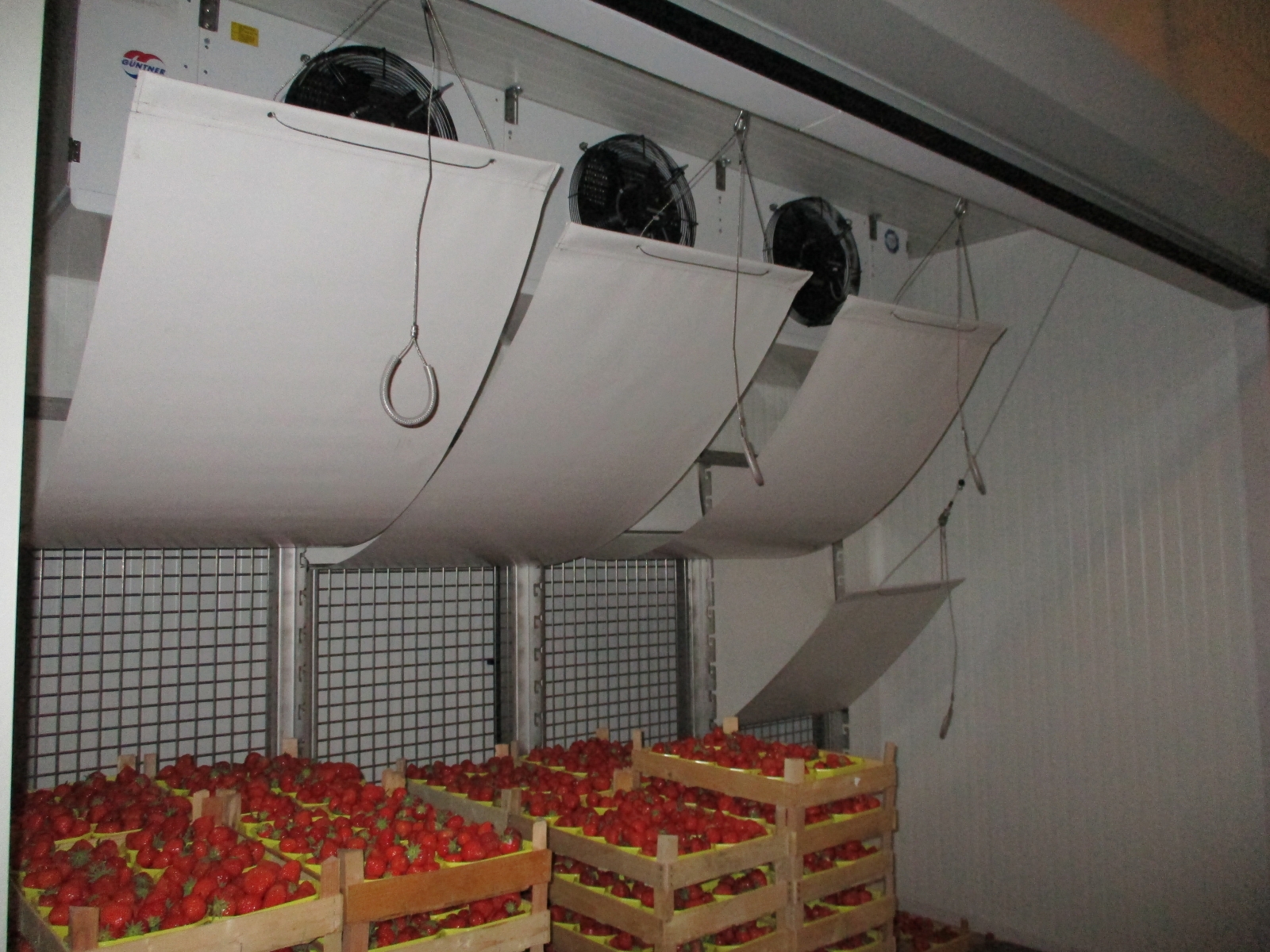

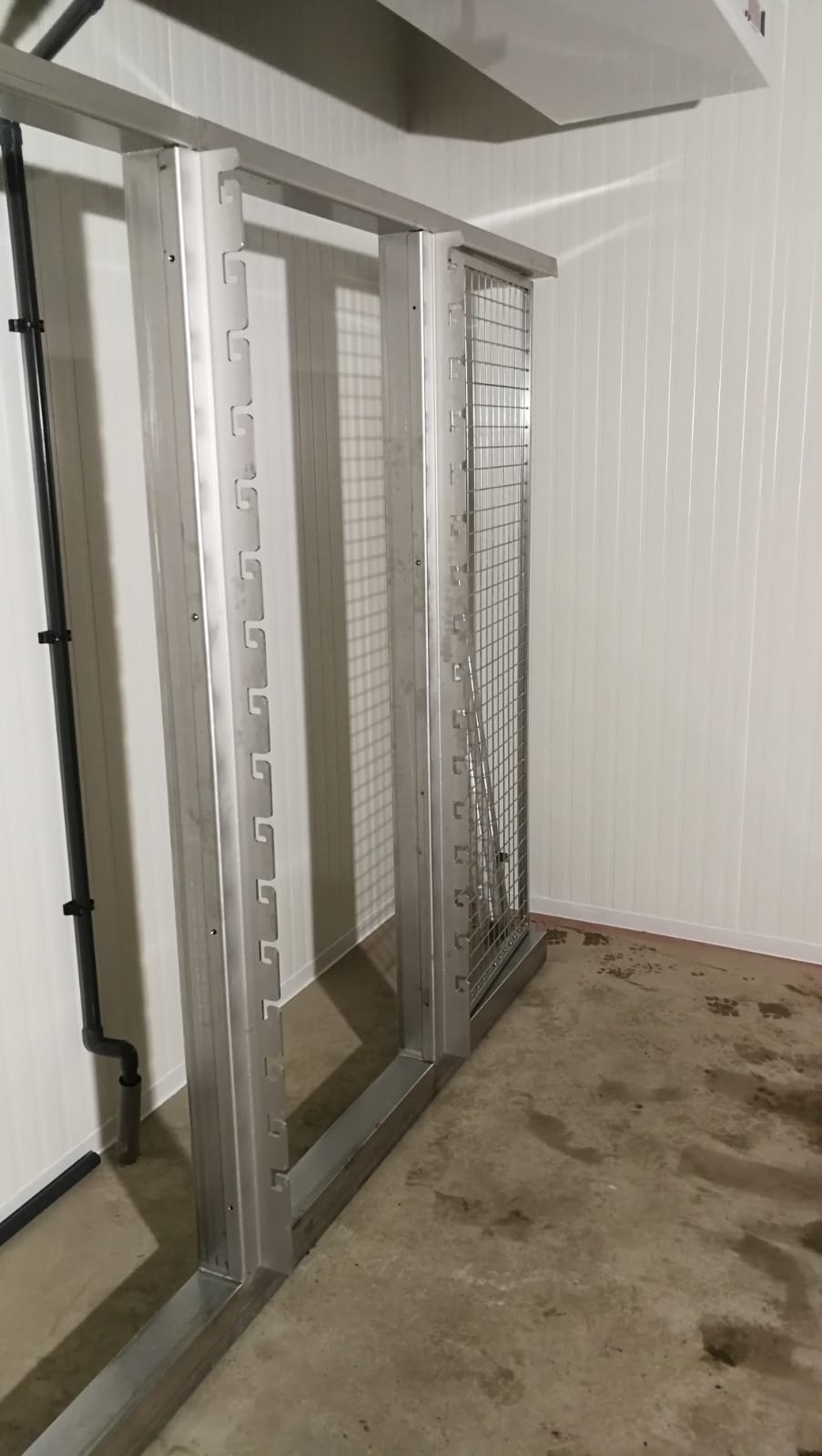

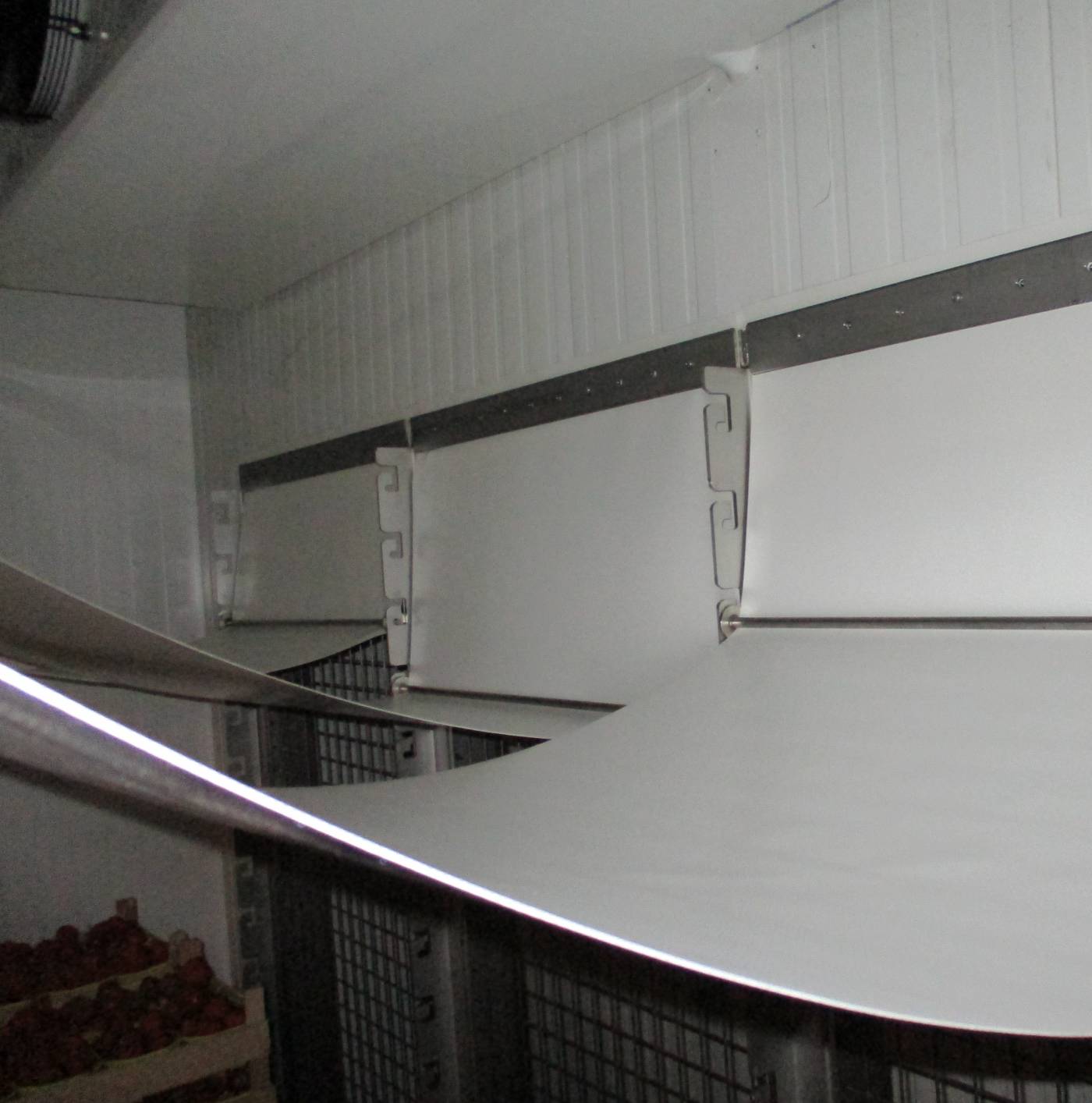

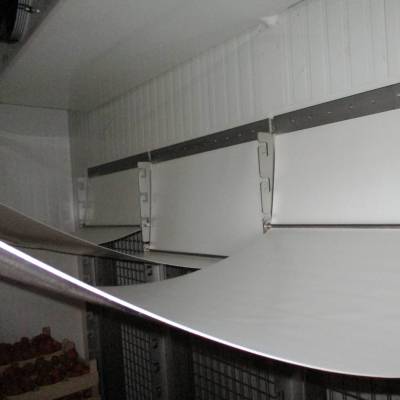

• Individual, fixable curtains made of plastic including rear grid wall (suction wall)
  = for protecting the sensitive berries from direct air circulation in the room
• Switch cabinet
• Temperature sensor
• Ceiling evaporator for air cooling
• Electrical roller shutter
• Cooling via two different systems possible:
  1. Integrated cooling unit
     Use of gaseous refrigerants
  2. External chiller in 2-substance circuit
     Use of water-glycol mixture

• PLC control for regulating energy consumption when power is supplied via a photovoltaic system (also as a retrofit kit for existing systems)
• Sandwich panels in different thicknesses (80, 100 or 120 mm)
• Flexible adaptation to different room sizes
• Choice of different door elements (hinged or sliding door)
• Existing rooms can be converted into a cold room

Execution of the entire system in accordance with applicable VDE guidelines.
