Function / Application:

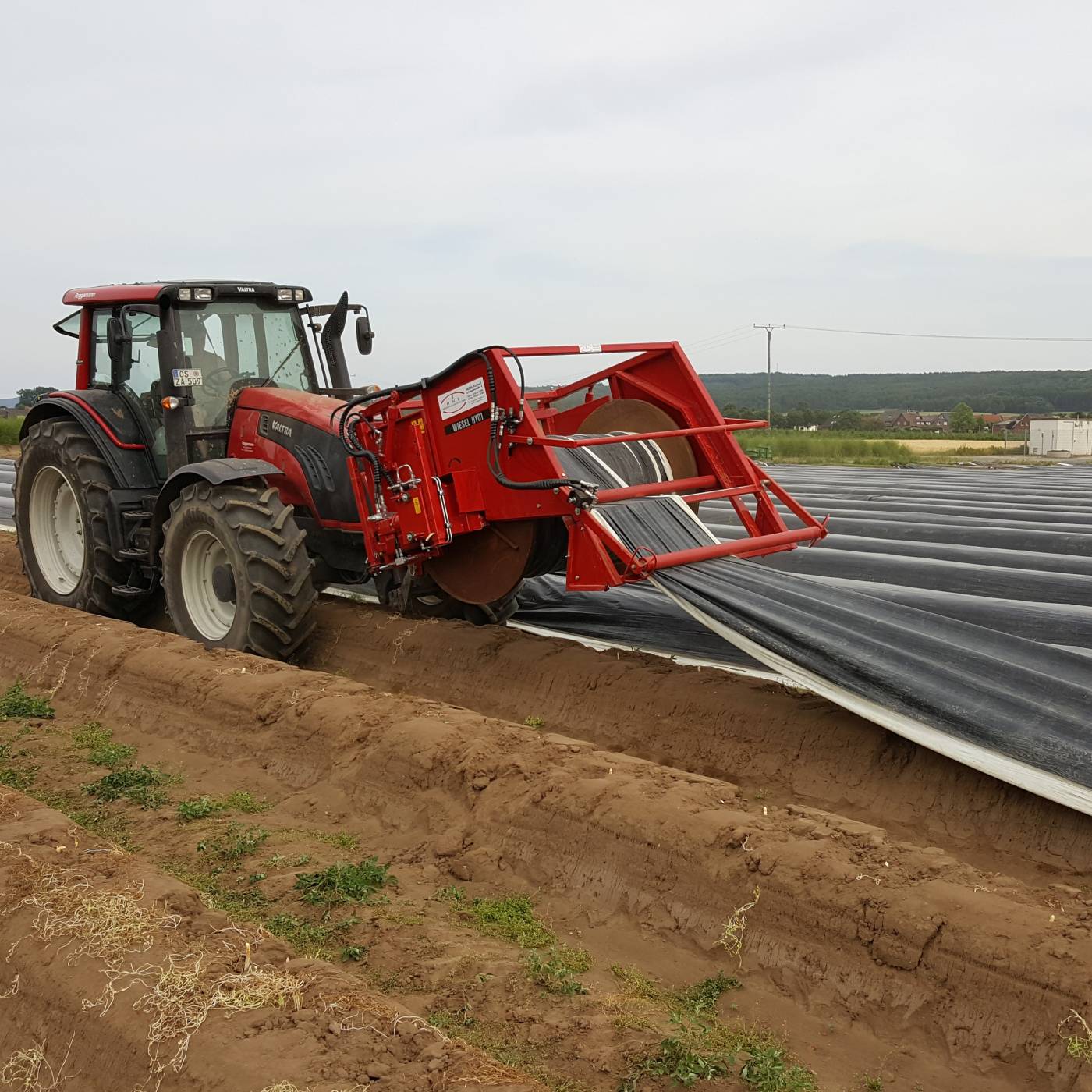

- Developed for the use of film in the ‘dam culture’ cultivation method in the fruit and vegetable industry

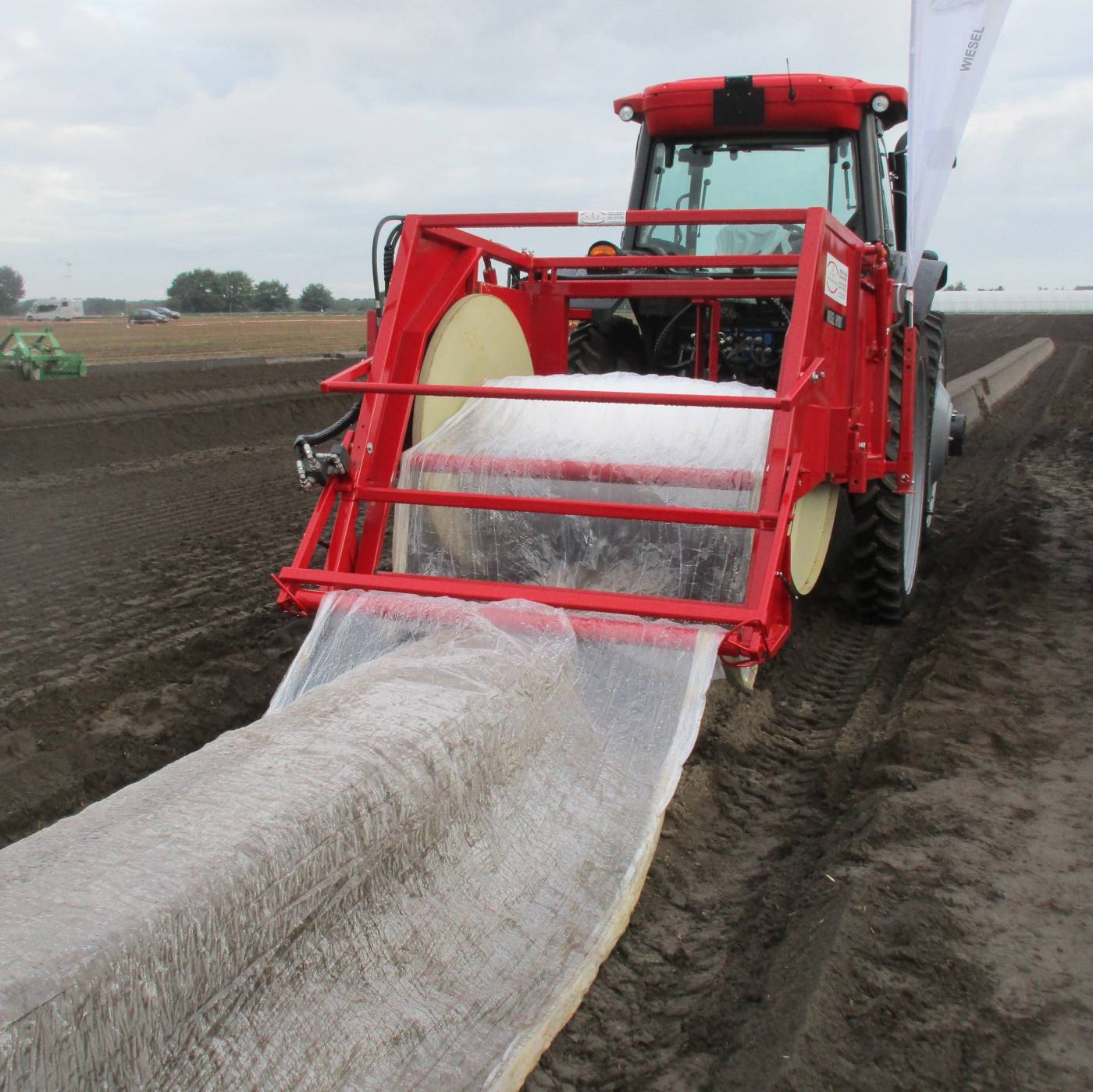

- For laying and winding or unwinding all known types of film
- Also suitabel for the core-less winding of all known types
- Drive via hydraulic motor
- Hydraulic coupling of the drive unit
- Hydraulic opening of the flap
- Swiveling steering

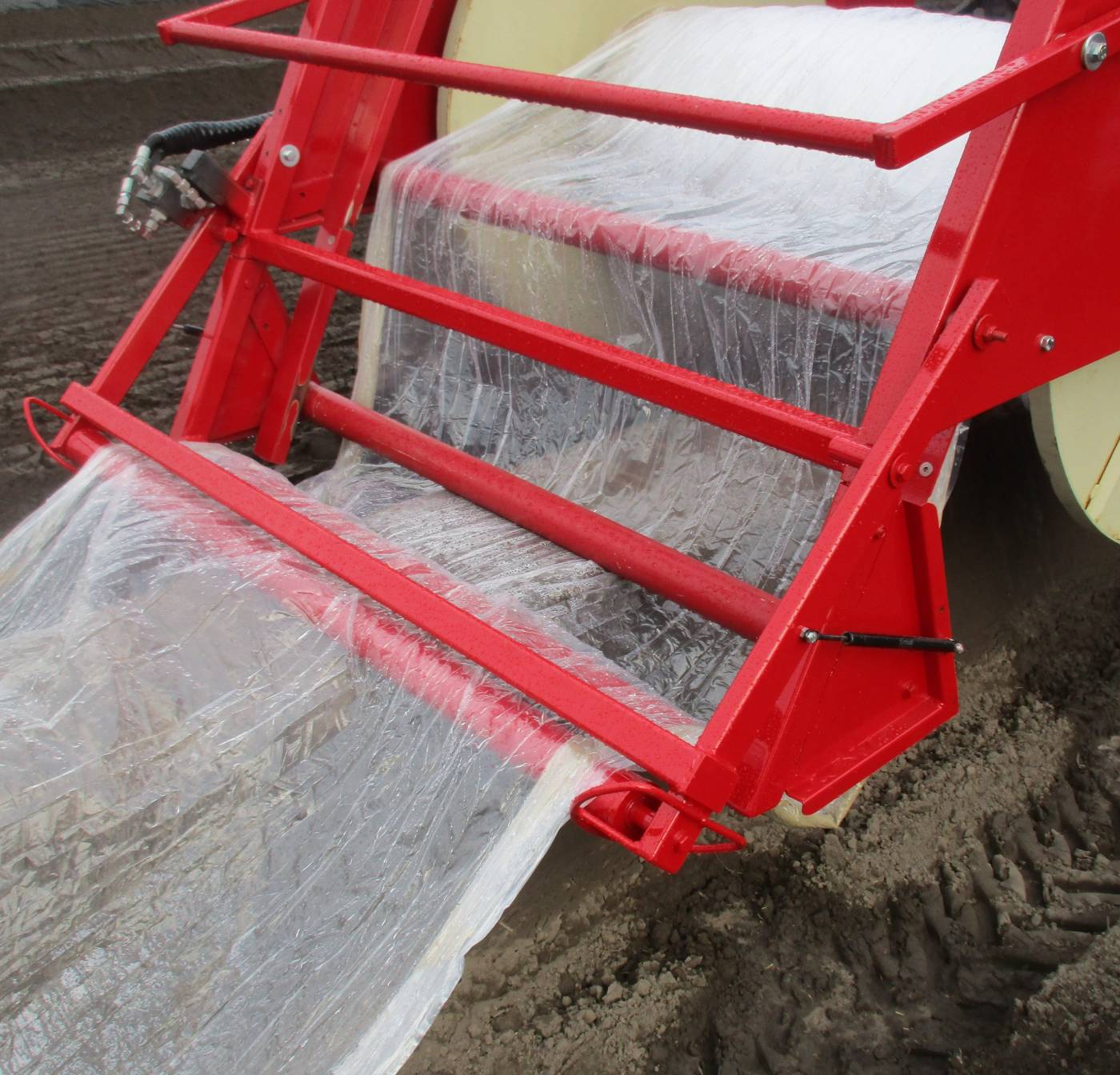

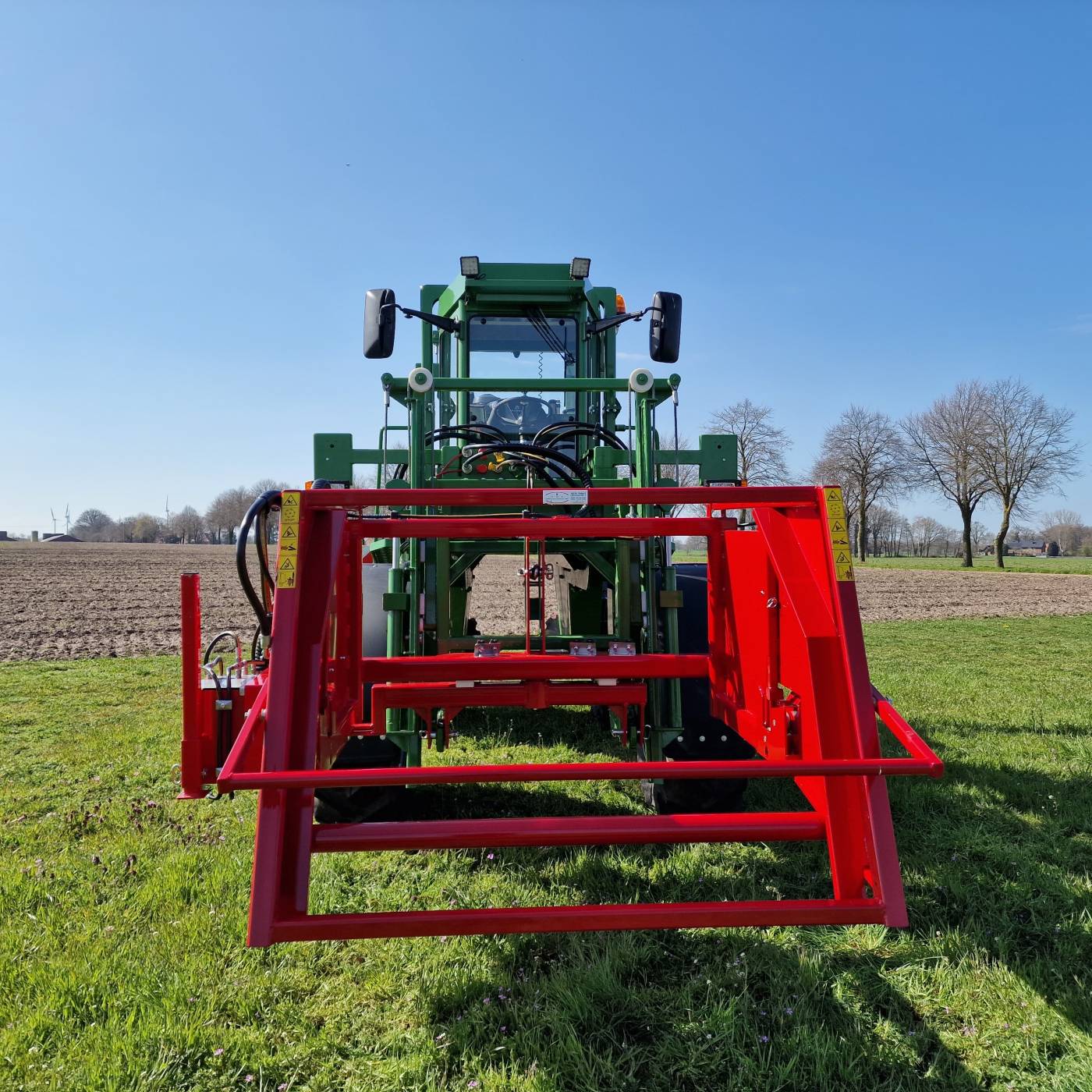

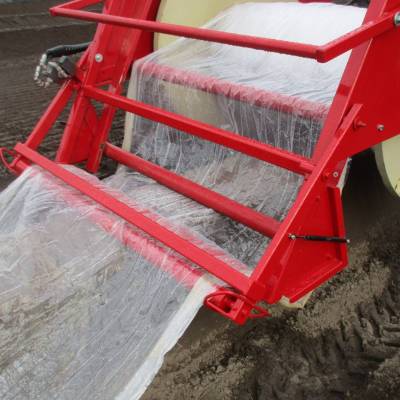

= Wind and rewind the film evenly - Standard safety bar to switch off the hydraulic motor
= Emergency stop - 2 x scraper
= Cleaning of coarse dirt during winding and rewinding - Changeover valve for changing the direction of rotation of the angular gear and the hydraulic motor

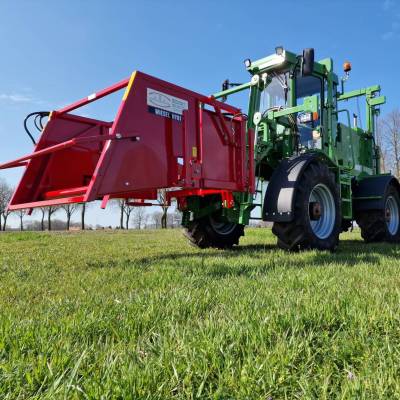

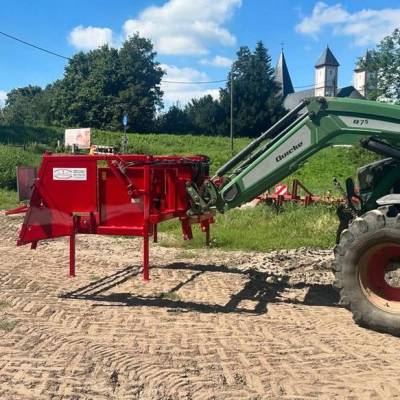

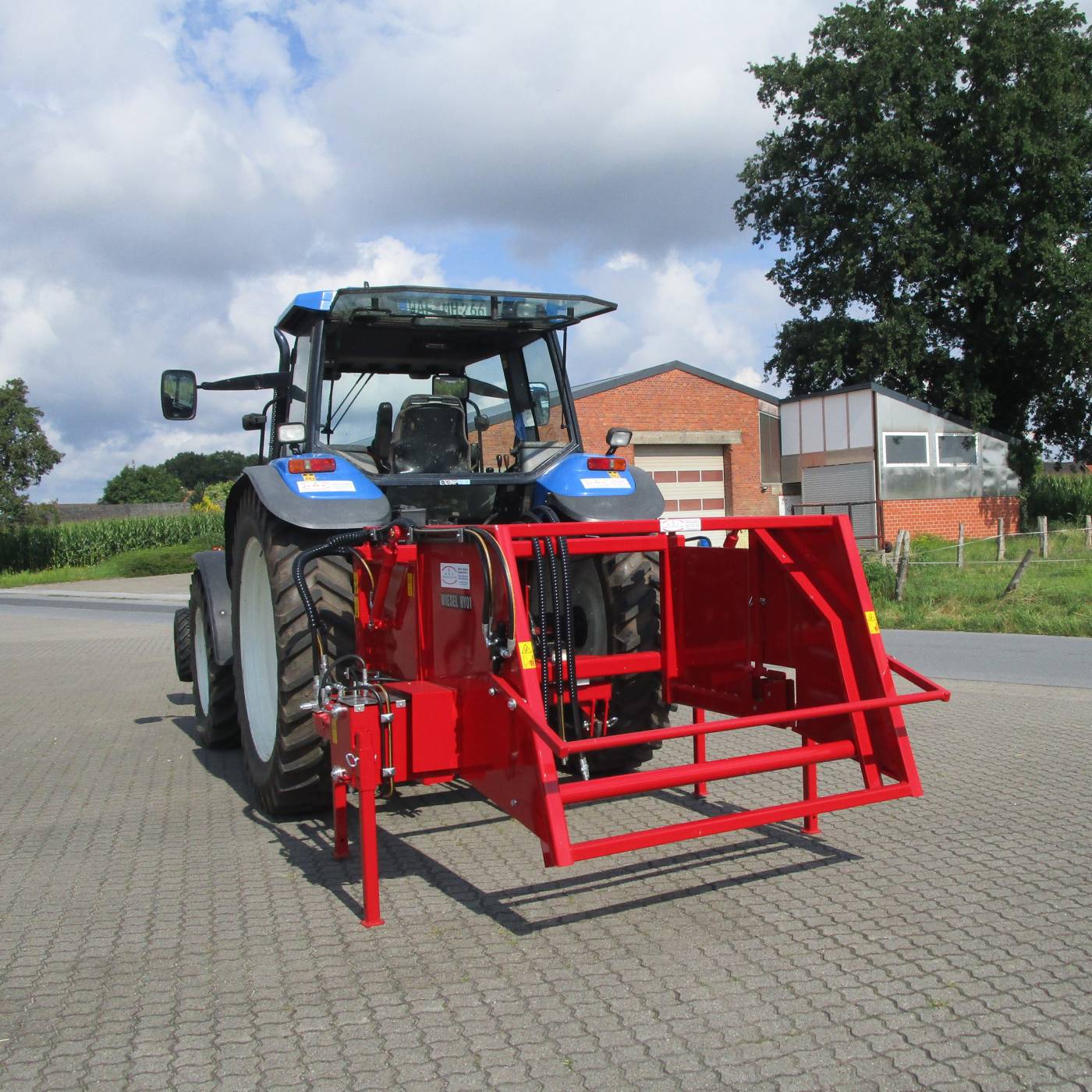

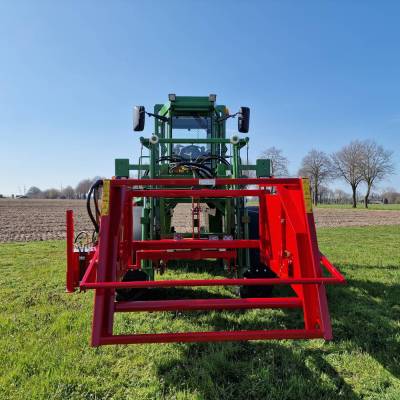

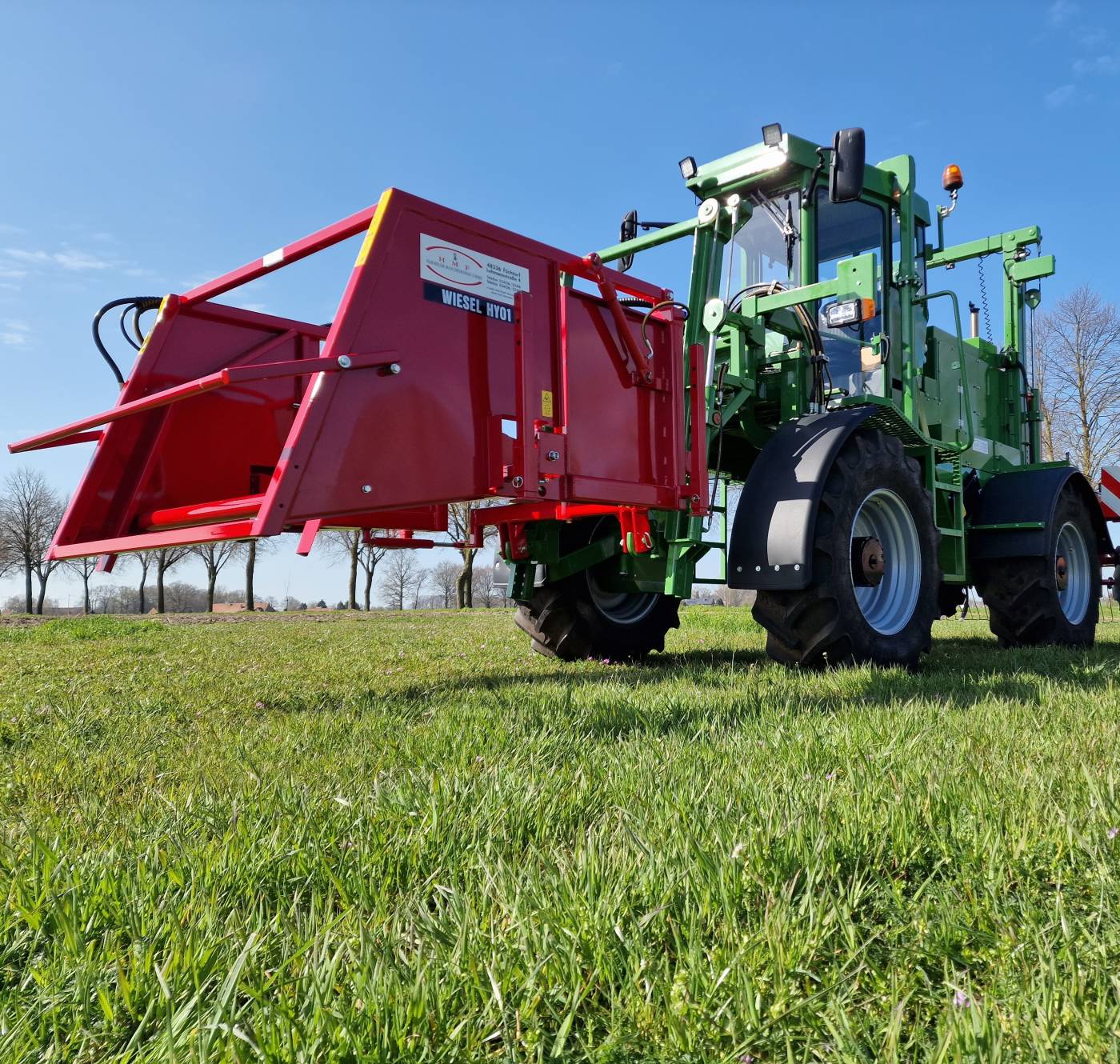

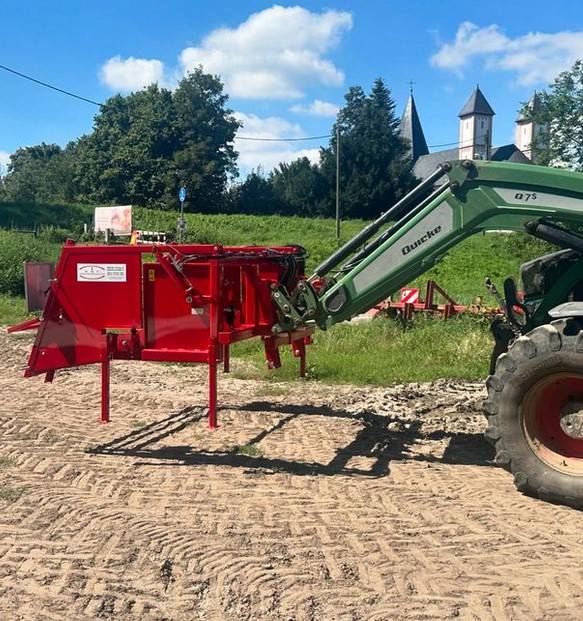

- Front and rear attachment
- 4 x support wheel
- Winding capacity: up to approx. 1000 m per reel, depending on the film
- Film width: up to approx. 2000 mm
- Output per hour.: approx. 2-3 ha
- Dimensions: approx. 2200 x 2400 x 1550 mm LxWxH
- Weight: approx. 550 kg
- Power requirement: from approx. 80 hp
(Tractor must be able to lift approx. 1.8 t) - Tractor must have 3 double-acting control units

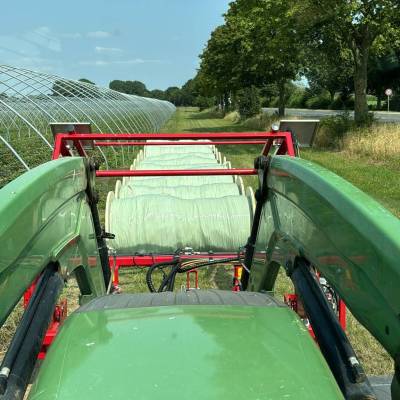

- Reel
The film winder works exclusivly with reels. - Special reel + hydraulically driven extractor for removing the tube for core-less disposal of film
= Dual function - Can also be used as a core-less film winder. - Automatic film tensioning
- For controlling the winding speed depending on the travelling speed

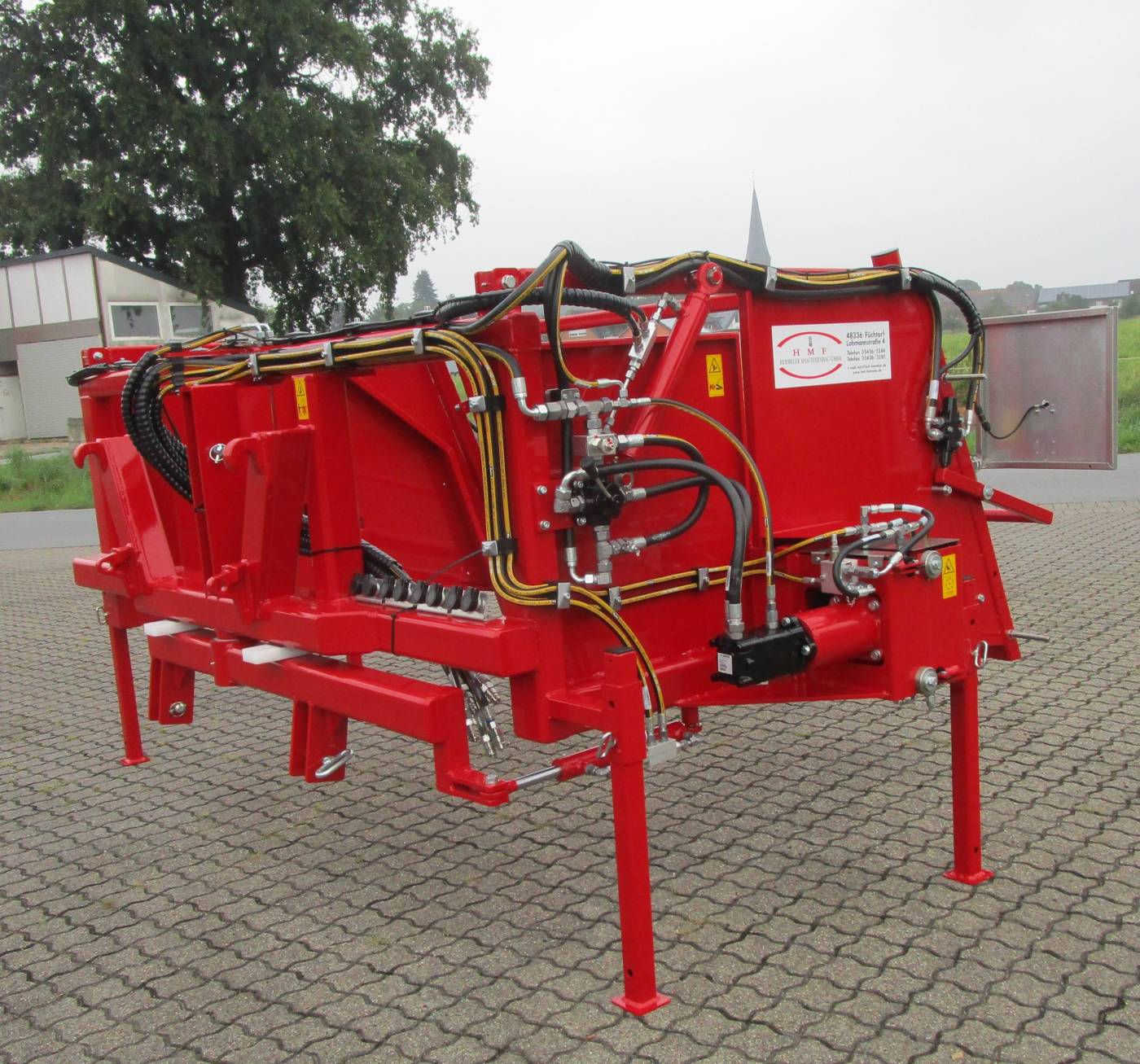

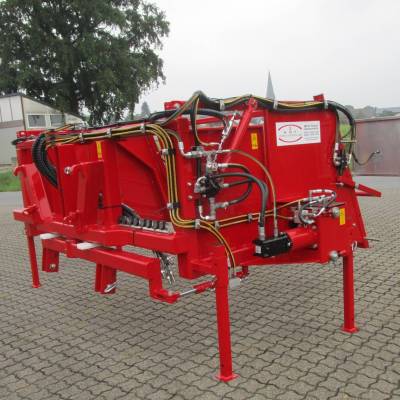

= Particularly suitable for tractors without oil quantity reduction adjustment function - Valve block with switchover to reduce the hydraulic hoses from 7 to 3:
- 1 x double-acting control unit
- 1 x unpressurised return line

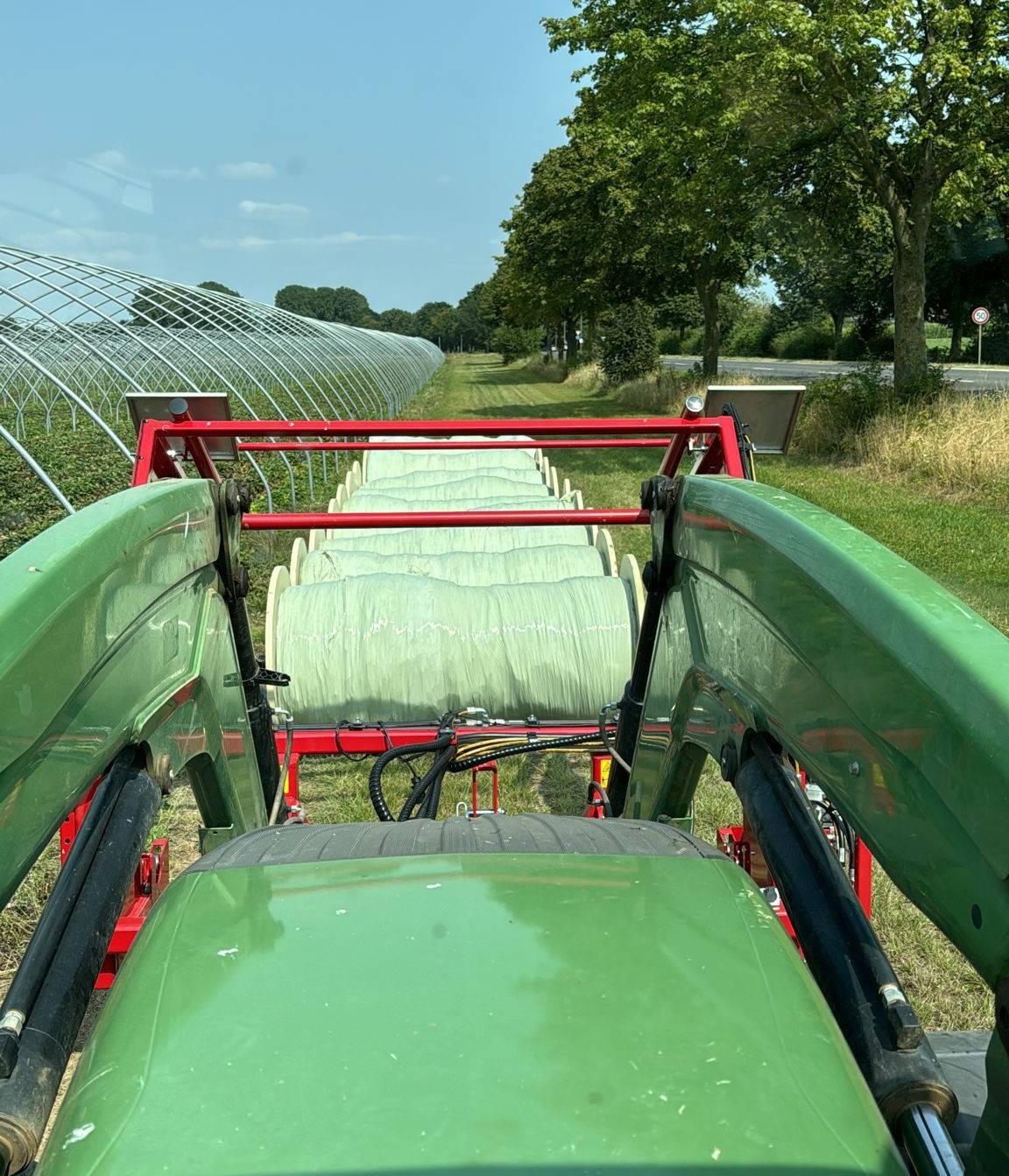

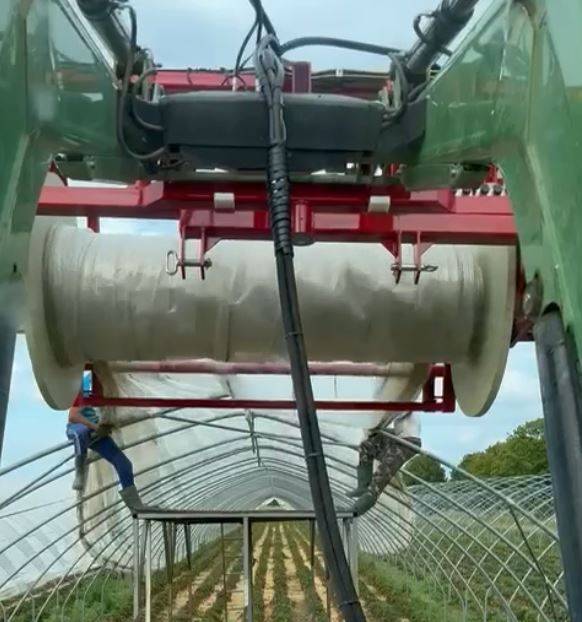

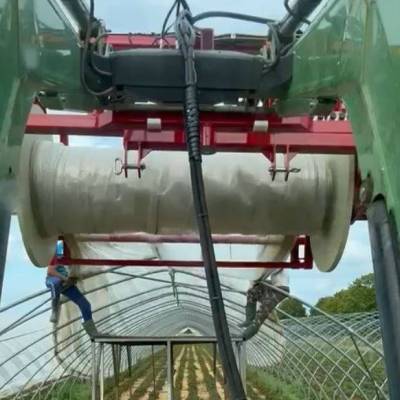

- Control block for function control separately in the tractor - Film winder especially for winding green house film in strawberry cultivation
The issue of film disposal is increasingly coming into focus with the ‘dam culture’ cultivation method. Waste disposal companies are pushing for core-less film delivery and machines for core-less winding of film for disposal are on the rise.

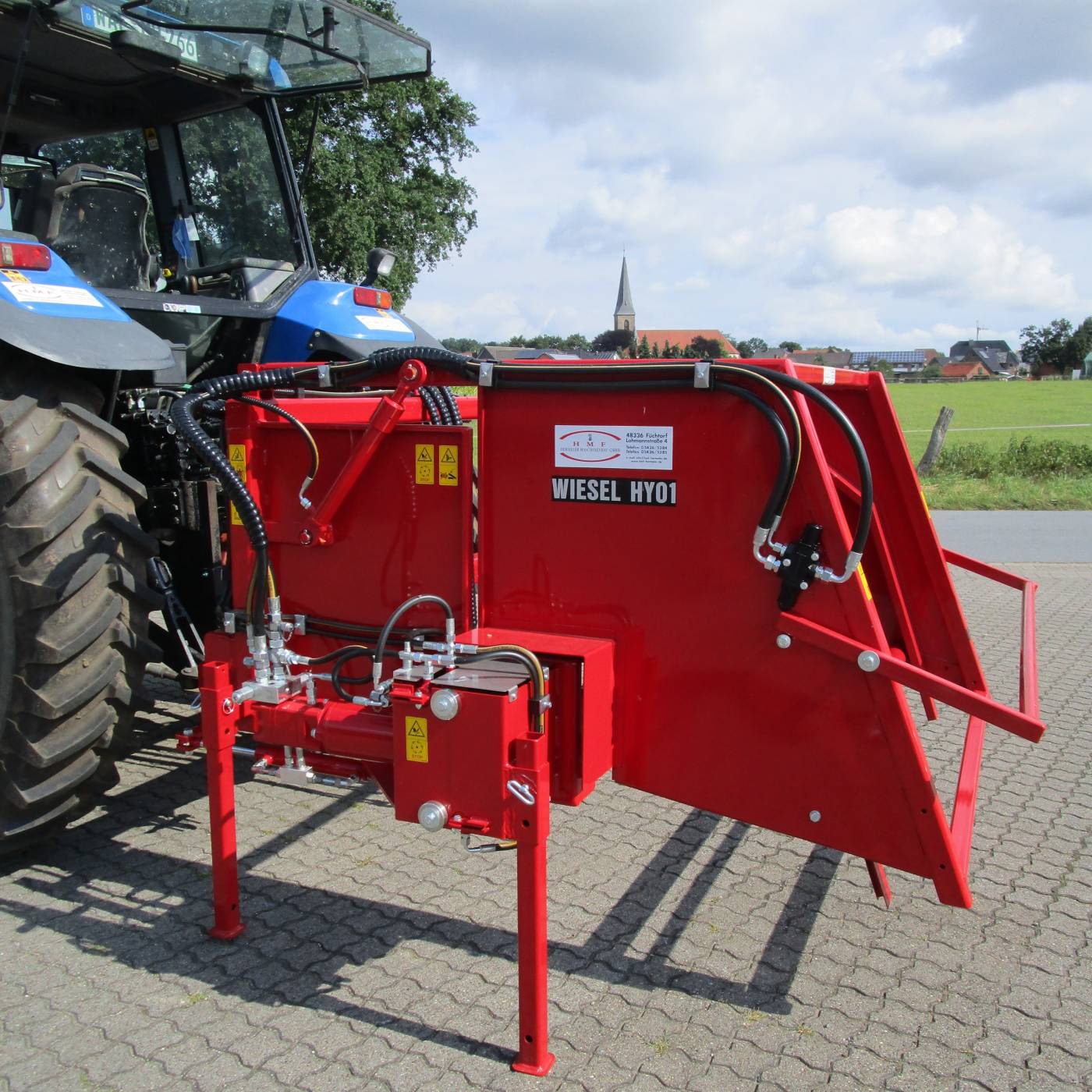

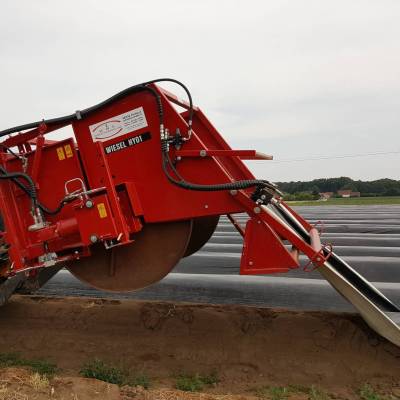

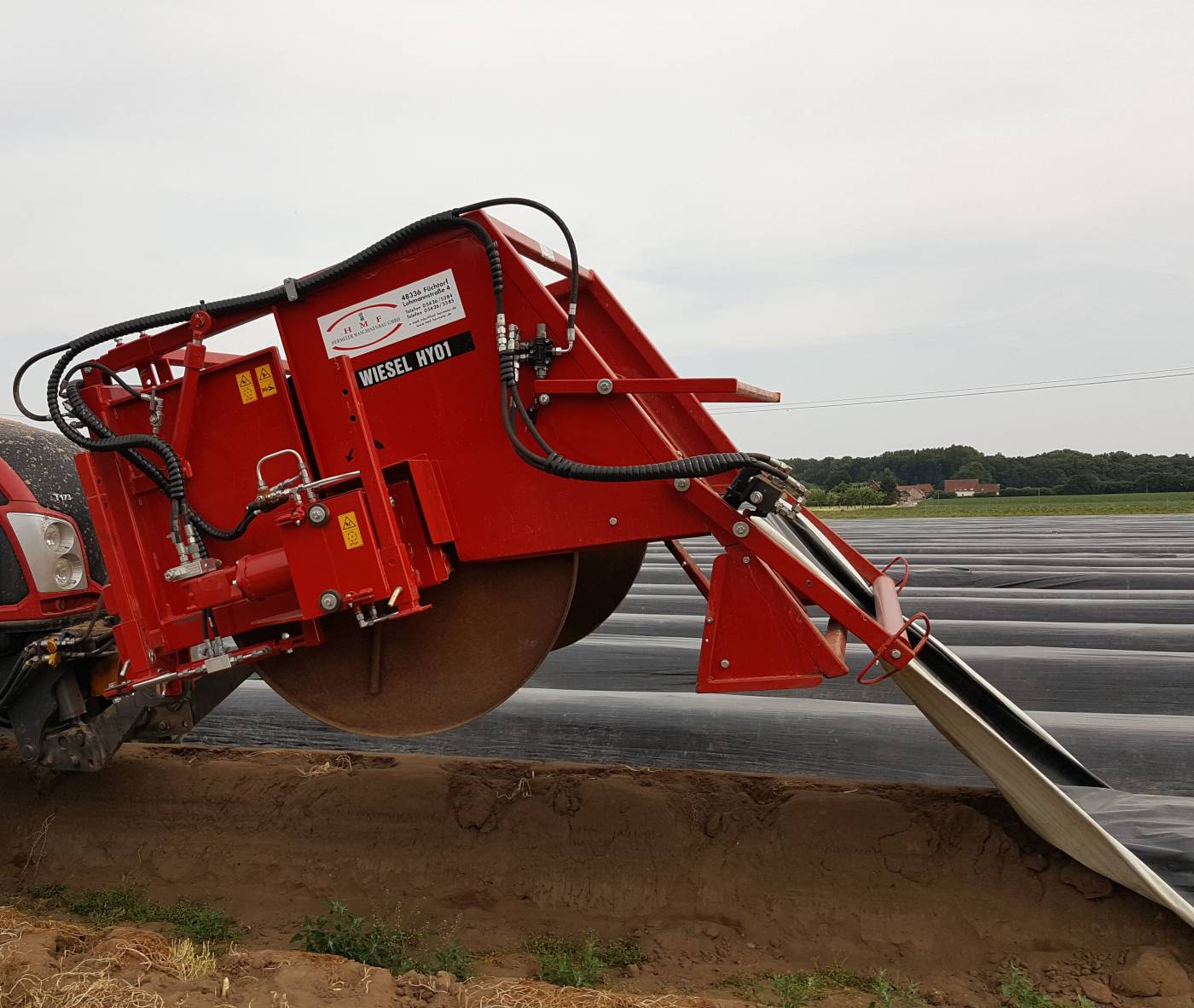

The WIESEL HY01 film winder combines both:
In addition to its primary function of winding and unwinding film, the WIESEL HY01 can also be used as a core-less film winder.
Two accessories are sufficient for this:
- Special reel
- Hydraulically driven extractor

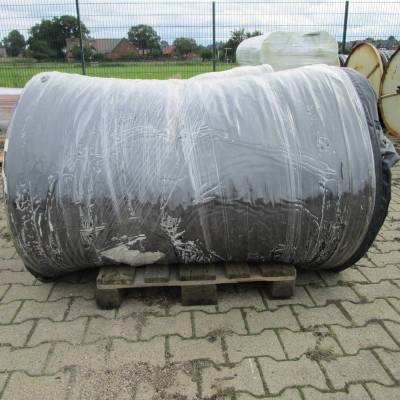

The film to be disposed of is wound onto the special reel tube.

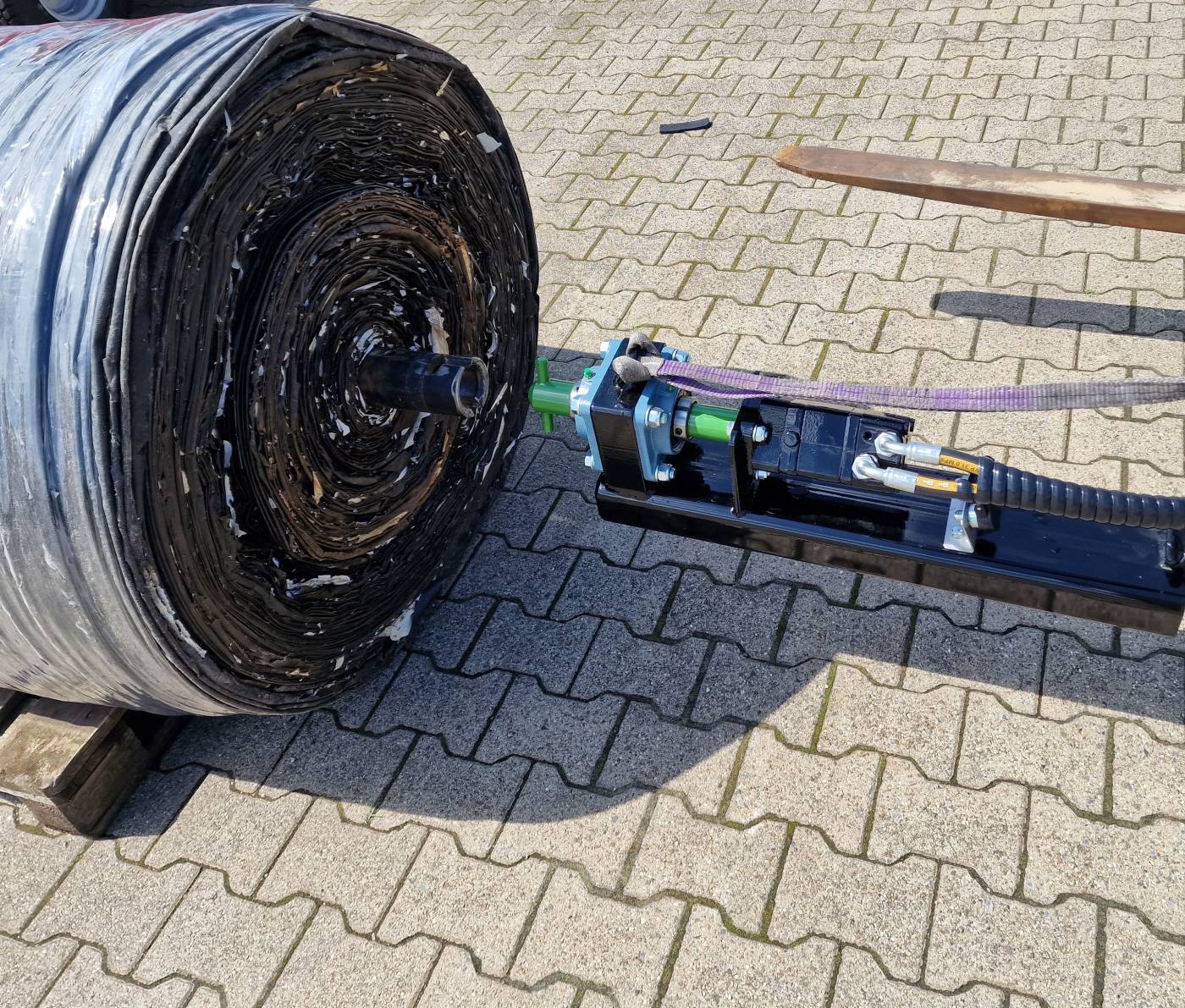

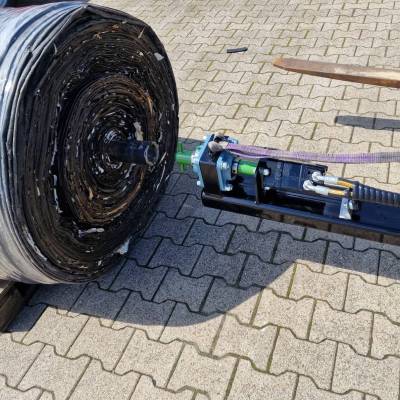

The hydraulic extractor is mounted on the tractor, from where it is also controlled.

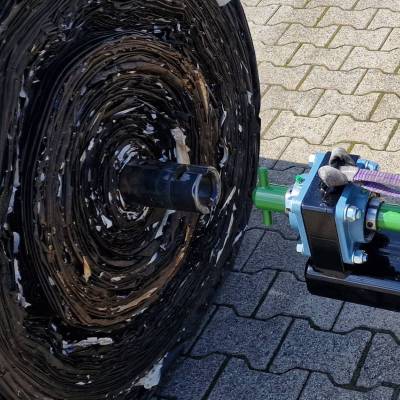

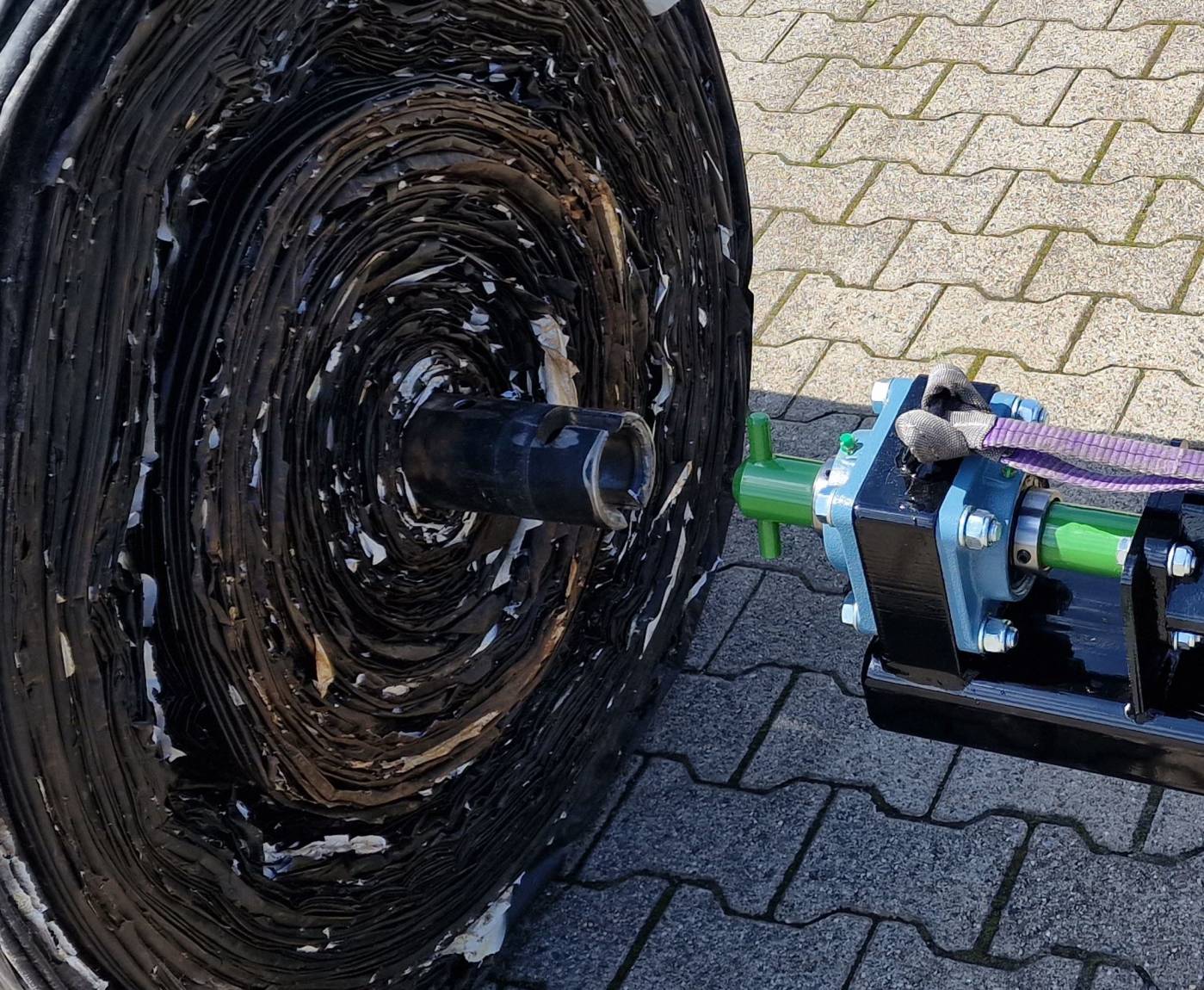

The extractor is guided into the tube of the special reel and locked into place.

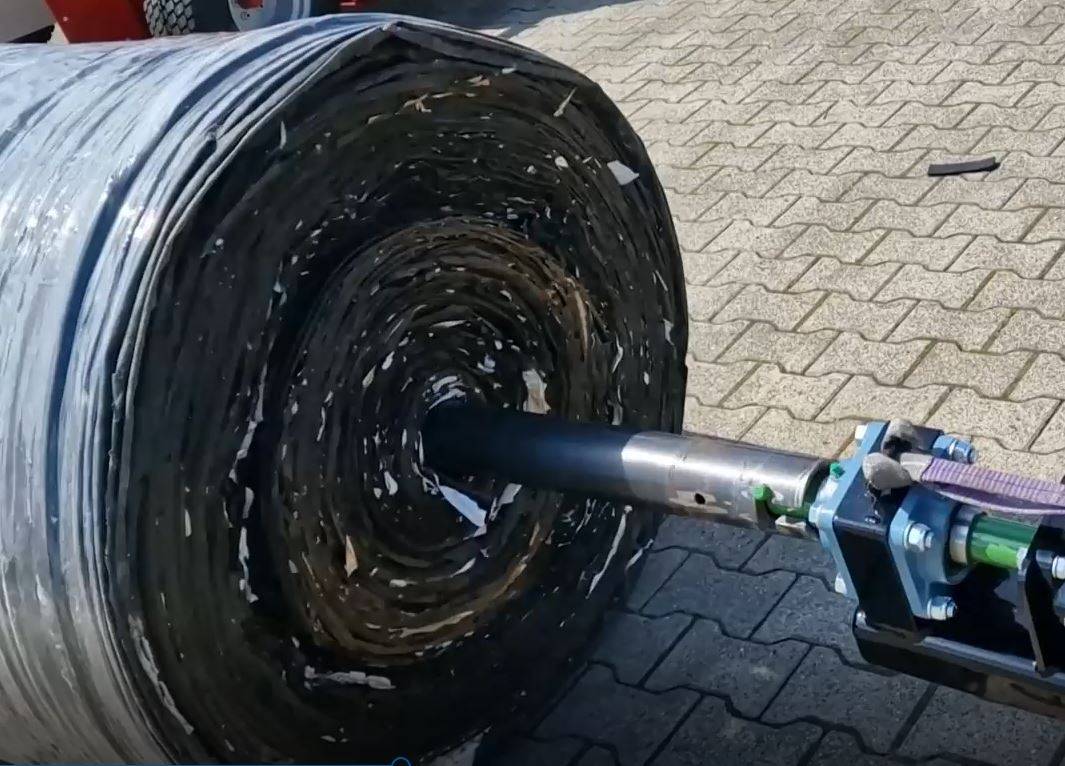

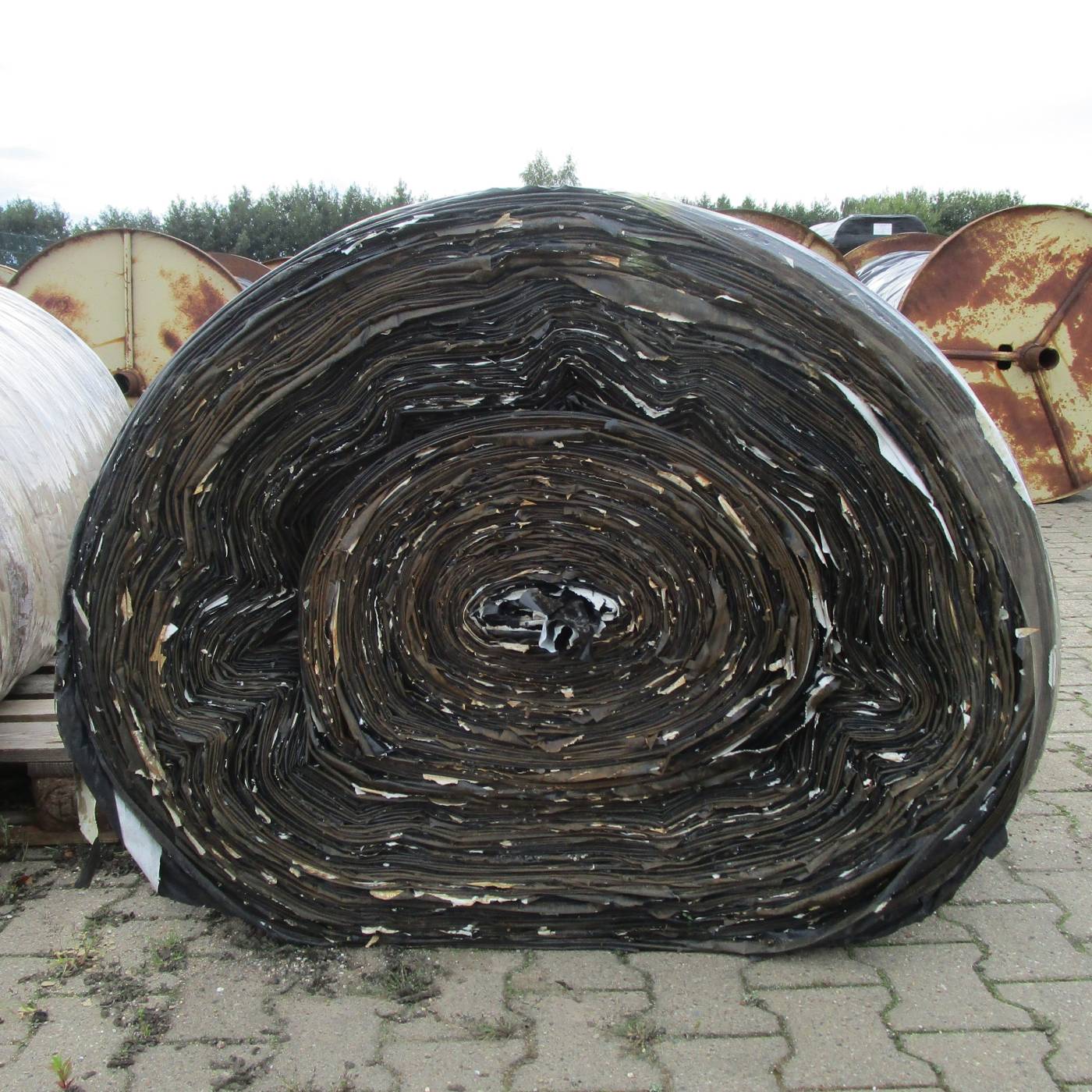

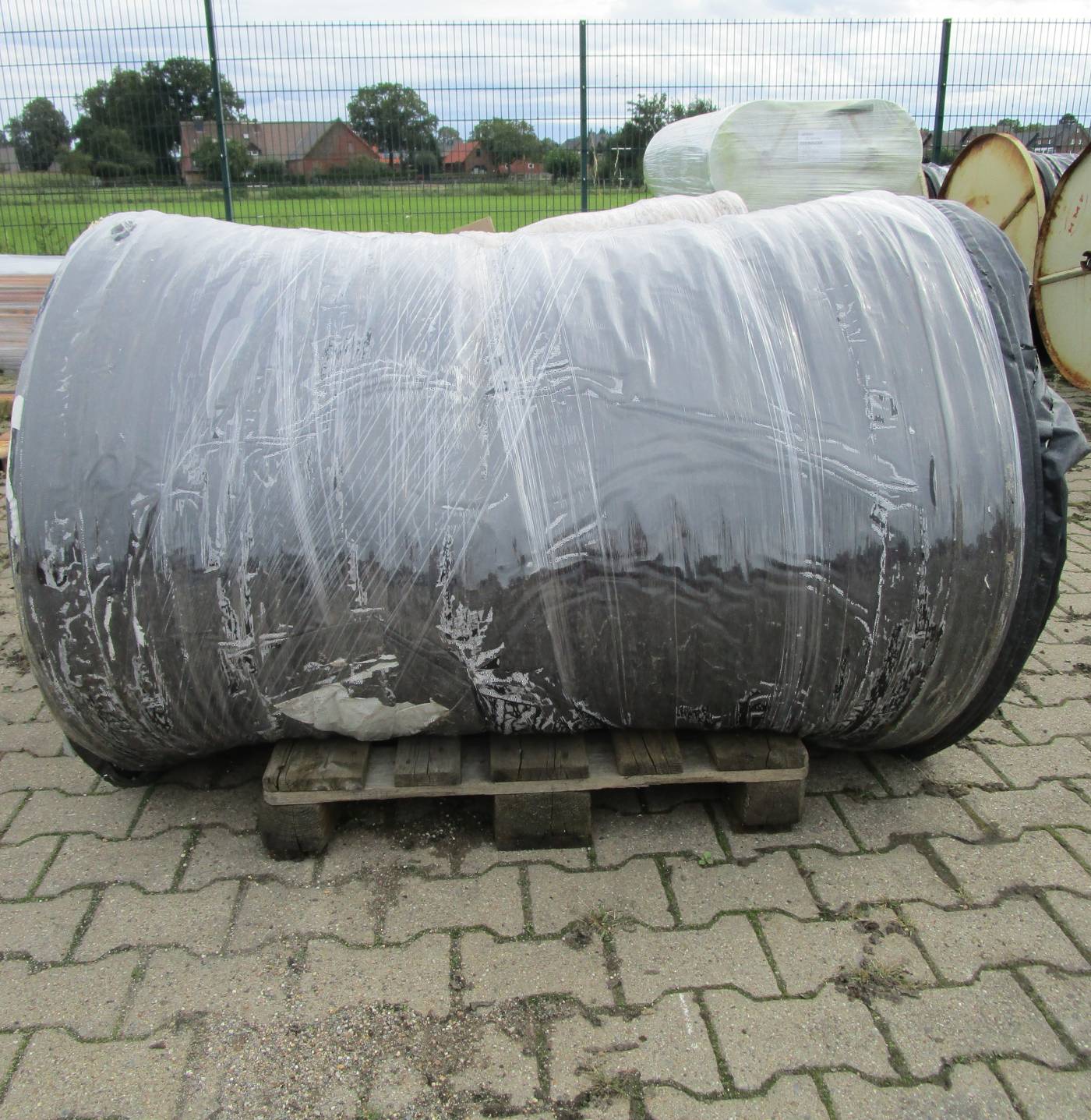

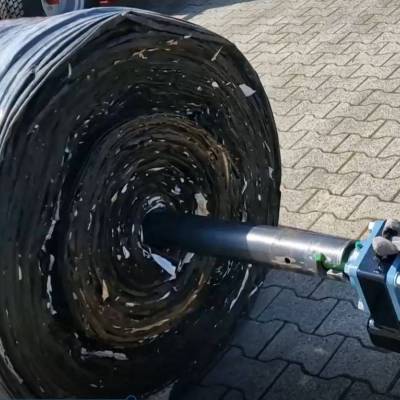

When the tube is extracted, the wound film can be easily loaded and sent for disposal.Individual modifications regarding equipment, dimensions, etc. on request.
